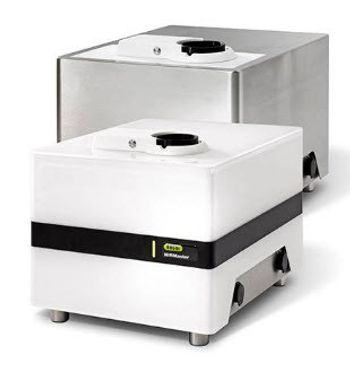

BUCHI Corporation - NIRMaster™
Manufactured by BUCHI Corporation
FT-NIR top performance
Control the quality and nutritional facts of your feed, pet-food, milling and bakery products rapidly. The NIRMaster is the world’s first dedicated FT-NIR standalone spectrometer available in food-grade PMMA or stainless steel. The accuracy and reproducible performance of polarization FT technology plus the hygienic design with certified dust protection meets the easy cleaning processes requested for at-line machinery.
Best results
Highly reproducible results with polarization FT-NIR technology
Precise measurement of multiple parameters simultaneously
Exact data through top wavelength precision guaranteed by internal laser system
Ease of use
Efficient and time saving quick-start calibrations
Compatible with standard industry monitor and keyboard
Certified dust and splash water protection (IP54)
Easy-clean hygienic design
Reliable
Maximum reliable reads through vibration proof FT polarization interferometer
Permanent performance verification through frequent internal standard checks
Safe operation due to embedded industry standard PC
Continuous operation with twin-lamp safeguard
Best results
Active Questions & AnswersAsk a Question
There are no current Discussions
NIR Spectrophotometers Service ProvidersView All (1)
Documents & ManualsView All Documents
Features of NIRMaster™
The BUCHI polarization interferometer
BUCHI has adapted the successful quartz polarization interferometer by using crystals with a very high refractive index. This leads to optimum resolution and a compact design maintaining the advantage of insensitivity to mechanical disturbances. The reason for the superior performance of this interferometer in rough environments is the difference of spatial movements and the optical path shifts for the two light beams in a birefringent crystal of variable thickness. Whereas in a Michelson type interferometer mechanical distortions directly affect the interference, such effects are reduced by a factor of 10 to 20 in a crystal interferometer.
Easy-clean design increases food safety day by day
The hygienic easy-clean design and high ingress protection (IP) support your routine work in harsh environments. The NIRMasterTM is available in food-grade PMMA housing or stainless steel housing with IP54 or IP65.
The twin lamp module
BUCHI has set a new standard in terms of the availability of an NIR spectrometer. Our NIR spectrometers are equipped with a twin lamp module, which will automatically switch to a second integrated lamp in the event of a failure of the primary source. This minimizes the risk of an instrument failure, and sufficient time is left to order a replacement lamp. Meanwhile you can continue your measurements without further intervention.
General Specifications
There are no General Specifications available.
