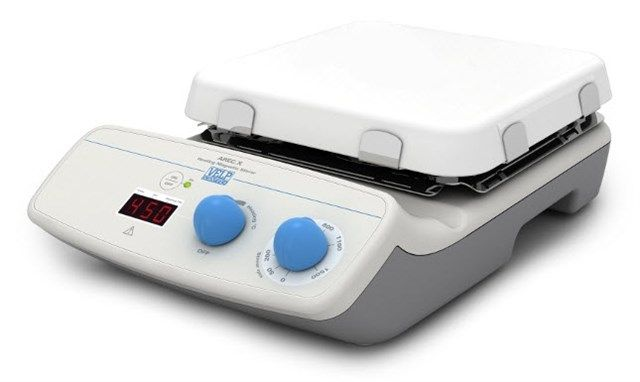

VELP Scientifica - Digital Ceramic Hot Plate Stirrer - AREC.X
Manufactured by VELP Scientifica
Powerful digital, square hot plate stirrer with a socket for the connection to a VTF Vertex digital thermoregulator.
Unmatched Operation
Ceramic heating plate resists acids, bases and solvents
Technopolymer casing resists chemicals, scratches and surface abrasions
Maximum temperature 550 °C
Accepts up to 15 liter flasks
Electronic speed regulation up to 1500 rpm
Precise Results
SpeedServo™ ensures constant speed even when the viscosity changes
Controls to ± 0.5 °C with VTF and VTF EVO, ± 1 °C with probe
Digital setting and display for temperature and time (on VTF and VTF EVO)
Connection for VTF Vertex digital thermoregulator for direct temperature control
VTF incorporates timer for unsupervised operation and increased productivity
Connection for VTF EVO Wireless Digital Thermoregulator
VTF EVO allows the thermoregulation management directly from the PC. D
Practical Solution
White ceramic plate ideal for color change observation
Metal vessels can be used on the ceramic plate
Low profile design for a heated model
Safety Above All
Hot plate warning displayed while cooling to below 50 °C
Control panel is separated from the heating plate
IP 42 protection
Protection from liquid spills with run-off groove
Convenient to Use
Inclined control panel for easy access and visibility
High visibility LED display of temperature (on AREC.X)
High power PCM-type driving magnet
Ceramic heating plate resists acids, bases and solvents
Technopolymer casing resists chemicals, scratches and surface abrasions
Maximum temperature 550 °C
Accepts up to 15 liter flasks
Electronic speed regulation up to 1500 rpm
Precise Results
SpeedServo™ ensures constant speed even when the viscosity changes
Controls to ± 0.5 °C with VTF and VTF EVO, ± 1 °C with probe
Digital setting and display for temperature and time (on VTF and VTF EVO)
Connection for VTF Vertex digital thermoregulator for direct temperature control
VTF incorporates timer for unsupervised operation and increased productivity
Connection for VTF EVO Wireless Digital Thermoregulator
VTF EVO allows the thermoregulation management directly from the PC. D
Practical Solution
White ceramic plate ideal for color change observation
Metal vessels can be used on the ceramic plate
Low profile design for a heated model
Safety Above All
Hot plate warning displayed while cooling to below 50 °C
Control panel is separated from the heating plate
IP 42 protection
Protection from liquid spills with run-off groove
Convenient to Use
Inclined control panel for easy access and visibility
High visibility LED display of temperature (on AREC.X)
High power PCM-type driving magnet
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features of Digital Ceramic Hot Plate Stirrer - AREC.X
Hot Plate Stirrers - Powerful Motor for High Range of Speeds:
AREC.X is equipped with an extremely powerful motor, able to stir volumes up to 15 liters (H2O) at very high speeds.
Another precious feature of this hot plate stirrer is the SpeedServo™ counter-reaction, which ensures constant speed even when the viscosity changes.
Hot Plate Stirrers - Front Panel:
The extremely bright and easy-to-read digital display constantly shows the temperature set by the operator.
By turning the left knob it is possible to adjust the temperature (up to 550 °C), whilst the right one controls the stirring speed (up to 1500 rpm).
Once the unit has been switched off or after havig set the temperature to zero, a "Hot Plate Warning" will be displayed, for improved safety. As soon as the temperature has cooled down to 50 °C, this warning will be automatically turned off.
Hot Plate Stirrers - Thermoregulation of the Liquid:
AREC.X can be connected to the external probe Pt100 (code A00000268), in order to get a system that allows a thermoregulation of the liquid.
The probe ensures thermoregulation up to 250 °C, with an accuracy of ± 1.0 °C.
For higher performance, AREC.X can be connected to the VTF Digital Thermoregulator.
VTF ensures perfect and precise thermoregulation up to 300 °C, with premium accuracy of ± 0.5 °C.
VTF is equipped with a timer, for unsupervised operation and increased productivity.
Hot Plate Stirrers - Innovative Technopolymer Body:
The hot plate stirrer AREC.X is the first to be entirely made with technopolymer, being ideal for premium resistance to acids, bases and solvents. We constantly focus on develop new premium materials, in order to offer innovative solution to our customers.
Creating an entirely new design means inventing new technology.
Hot Plate Stirrers - Maximum Protection Against Leakages - IP 42:
The hot plate stirrer AREC.X ensures a premium level of safety and protection for the user, thanks also to the elevated control panel and the dedicated run-off groove.
The control panel is easily accessible, is positioned at a safe distance from sources of heat and is protected against possible damage caused by liquid spills thanks to a dedicated run-off groove.
The pressure die-cast structure is designed so that accidental liquid spills cannot reach the internal parts of the unit.
Hot Plate Stirrers - Easy to Clean, Remarkable Resistance:
AREC.X is extremely easy to clean!
By using a cloth dampened, all the residues will be easily removed and the top plate will be perfectly clean.
At the same time, ceramic, which is an inert and very hard material, will offer outstanding resistance to almost any type of chemical or mechanical aggression; its surface characteristics remain unaltered over time.
Hot Plate Stirrers - Low Profile, Eye-Catching Design:
The hot plate stirrer AREC.X offers a highly innovative low profile and attractive design for an outstanding comfort.
Also the inclination of the front panel has been carefully studied to facilitate use.
General Specifications
| Depth | 344 mm |
| Height | 94 mm |
| Width | 203 mm |
| Power Requirements | 800 W |
| Stirring Speed Range | 0 to 1500 rpm |
| Weight | 3.3 kg |
| Construction | technopoymer structure |
| Top Plate Construction | Ceramic |
| Top Plate Material | ceramic material |
Additional Specifications
Dimensions of the heating plate:
180x180 mm (7.9x7.9 in)
Protection rating CEI EN 60529:
IP 42
Set temperature visualization:
digital display LED
Electronic temperature control:
from room temp. to 550 °C
Sample thermoregulation:
± 0.5 °C by using the Vertex thermoregulator;
± 1.0 °C by using external temperature probe
Stirring volume (H2O):
up to 15 liters
Stirring system:
high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation
Vertex connection:
provided
Counter-reaction:
constant speed
"Hot Plate Warning"
whenever the top plate temperature is over 50 °C
