Sensocon - Digital Differential Pressure Gauge - Series A1
The Series A1 Digital Differential Pressure Gauge is a patented microprocessor based digital pressure gage for positive, negative, and differential...

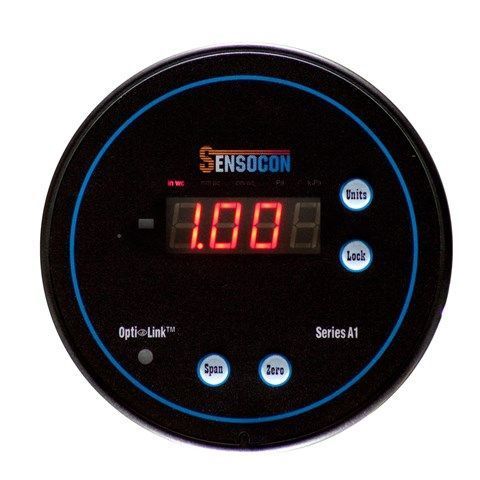

The Series A1 digital differential pressure gauges utilize an extremely stable piezoresistive sensing technology to give a standard full scale accuracy of 1%. For applications requiring better accuracy, the A1 is also available with 0.5% or 0.25% accuracy. The A1 pressure gauge also has an optional 4-20 mA output for applications requiring an output signal. The A1 features a bright ½" LED display, which gives the gauge improved readability and precision. The A1 digital differential pressure gauges also feature 5 user selectable engineering units including in. w.c., mm w.c., cm w.c., kPa, and Pa. The Series A1 offers an improved look, and performance compared to mechanical gauges.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pump Accessories Service ProvidersView All (3)
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Maximum Pressure:
Ranges -00 to -07 = 2 PSI (13.8kPa)
Ranges -08 to -12 = 10 PSI (68.9pKa)
Media compatibility:
Air and compatible non-combustible, non-corrosive gases
Accuracy*:
1.0%, 0.5%, or 0.25%
Temperature Ranges:
Compensated and Operating: -10° to 140°F (-23° to 60°C)
Thermal Effect*:
+/- 0.02% FS/°F
4-20 mA (option)
Loop Resistance:
750 Ω Max (for internally sourced power);
1800 Ω Max (for externally sourced power of 36 VDC)
Power Supply:
Universal 24-240 VAC or VDC
Housing Material:
Glass Filled Nylon
Enclosure Rating:
Designed to meet NEMA 4X (IP 65) face; with optional
cover the entire product is weatherproof
Electrical Connections:
screw terminals
Response Time:
<100 ms
Display:
4 Digit, red LED, ½" (12.7mm) digits
Process Connection:
Push on connection for 3/16" (5mm) tubing
Agency Approvals:
CE
* Custom calibration including improved accuracy and thermal effect are available.
