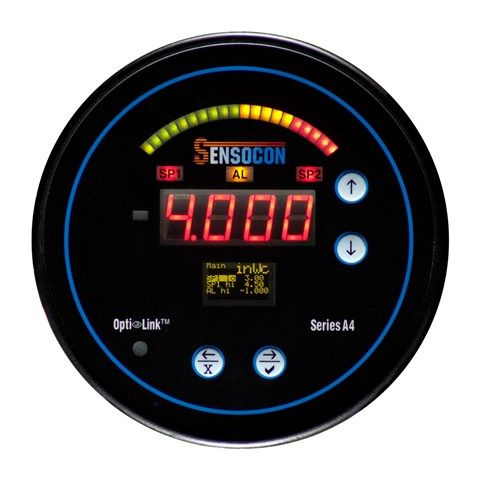

Sensocon - Digital Differential Pressure Control - Series A4
The Series A4 digital differential pressure controller is a patented microprocessor based pressure controller for positive, negative, and...
The Series A4 differential pressure controller includes (2) 8A SPDT relays and an associated programming menu that allows full configuration of variables such as setpoints, dead band, engineering units, flow coefficients, and more. The programming is done from a user friendly menu on the OLED display or uploaded using an Opti-Link™ programming key. The OLED also displays the exact setpoints or other user defined variables during normal operation. Furthermore, the menu structure can be customized by moving variables to different menu levels to accommodate many applications. Compared to other mechanical products, the Series A4 digital differential pressure controller has a significantly reduced depth, an improved look, and better performance at a similar price.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pump Accessories Service ProvidersView All (3)
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Maximum Pressure:
Ranges -00 to -07 = 2 PSI (13.8kPa)
Ranges -08 to -12 = 10 PSI (68.9kPa)
Media compatibility:
Air and compatible non-combustible, non-corrosive gases
Accuracy:
1.0%, 0.5%, or 0.25%
Temperature Ranges:
Compensated and Operating: -10° to 140°F (-23° to 60°C)
Thermal Effect*:
+/- 0.02% FS/°F
Output Signal:
4-20 mA (option)
Loop Resistance:
750 Ω Max (for internally sourced power);
1800 Ω Max (for externally sourced power of 36 VDC
Power Supply:
Universal 24-240 VAC or VDC
Housing Material:
Glass Filled Nylon
Enclosure Rating:
Designed to meet NEMA 4X (IP65) face; with optional
cover the entire product is weatherproof
Relays:
(2) SPDT 8 Amps @ 250 VAC, 5A @30 VDC
Electrical Connections:
screw terminals
Response Time:
<100 ms
Display:
4 Digit, red LED, ½" (12.7mm) digits; OLED programming display
Process Connections:
Push on connection for 3/16" (5mm) tubing
Agency Approvals:
CE
