Sensocon - Differential Pressure Switch
Manufactured by Sensocon

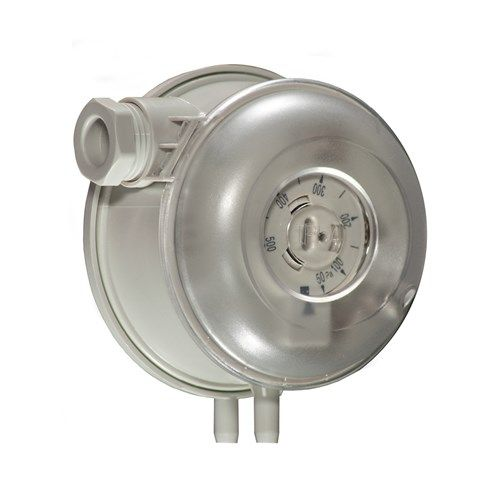

The Series 104 Differential Pressure Switch is a low-cost easy to use differential pressure switch for very low pressure applications.
The Series 104 Differential Pressure Switch is a low-cost easy to use differential pressure switch for very low pressure applications.
The differential pressure switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for2A @ 250V and can be set as low as 0.08” w.c. (20 Pa).
The differential pressure switch can monitor positive, negative, or differential pressure and with an easy to adjust set point knob makes field set up and adjustment hassle free. The differential pressure switch includes a SPDT relay rated for2A @ 250V and can be set as low as 0.08” w.c. (20 Pa).
Active Questions & AnswersAsk a Question
There are no current Discussions
Pump Accessories Service ProvidersView All (3)
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Media:
Air and compatible gases
Max Pressure:
20" w.c. (5000 Pa)
Temperature Limits:
5 to 140°F (-15 to 60°C)
Electrical Rating:
2A @ 250 V
Electrical Connection:
Screw terminals
Process Connection:
3/16" I.D. flexible tubing
Enclosure Rating:
NEMA 13 (IP 54)
Weight:
3.5 oz (100 g)
Accessories:
6 ft (1.8m) flexible tubing, (2) Static pressure fittings, C type mounting bracket,
and mounting screws
Repeatability:
2%
Deadband:
approximately 10% of max set point
