Sensocon - Differential Pressure Transmitter-212
The Series 212 Weatherproof Differential Pressure Transmitter can accurately measure positive, negative, or differential pressure and send a...

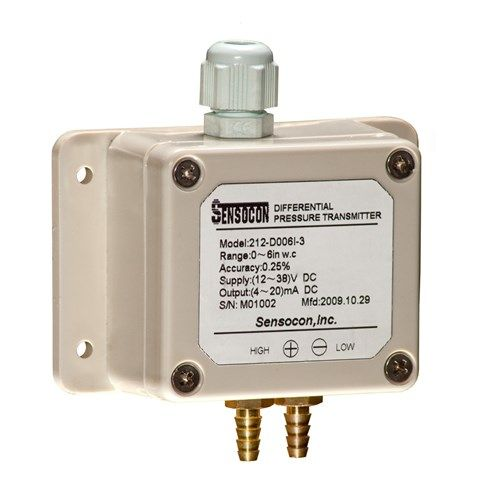

The Series 212 Weatherproof Differential Pressure Transmitter is designed with an IP 65 enclosure and can be easily mounted to any flat surface. The Series 212 is not position sensitive and can be mounted in any orientation without compromising accuracy. The compact, lightweight design makes installation simple and easy.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pump Accessories Service ProvidersView All (3)
Documents & ManualsView All Documents
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Maximum Pressure:
Ranges ? 5 PSI (35 kPa) = 15 PSI (100kPa) Max
Ranges > 5 PSI (35 kPa) = 30 PSI (200kPa) Max
Media compatibility:
Air and compatible non-combustible, non-corrosive gases
Accuracy:
Ranges ? 4" w.c. (1kPa) 1.0%
Ranges ? 5" w.c. (1.25kPa) 0.25%
Temperature Ranges:
Compensated: 15° to 120°F (-10° to 50°C)
Operating: -10° to 155°F (-25° to 70°C)
Thermal Effect:
+/- 0.028% FS/°F (+/- 0.50% FS/°C)
Stability:
+/- 0.25% FS/year
Output Signal:
4-20 mA, 2-wire or 0 - 10 V
Loop Resistance:
250 Ω @ 24 VDC
Power Supply:
12-30 VDC
Enclosure Rating:
IP 65
Electrical Connections:
screw terminals
Electrical Entry:
PG7 Cable Gland
Process Connection:
Barbed fittings for 3/16” flexible tubing
Agency Approvals:
CE
