Thermo Scientific - CW3 Cell Washer
Manufactured by Thermo Scientific
Precise, automated performance with the Thermo Scientific™ CW3 Cell Washer is designed to provide thorough,...

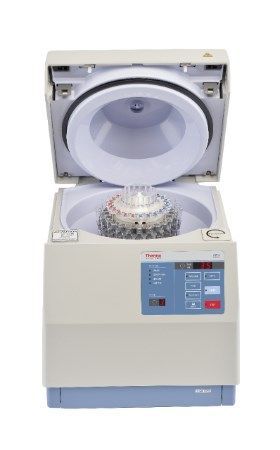

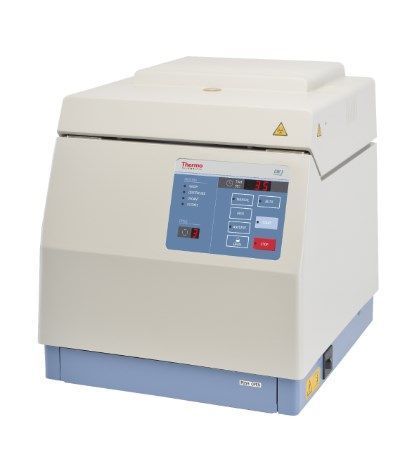

Precise, automated performance with the Thermo Scientific™ CW3 Cell Washer is designed to provide thorough, reproducible blood cell washing, up to 24 tubes per run. Save time with pre-set programs in automatic mode and flexibility of 12- or 24-place rotors meets your protocol requirements. Easy-to-read digital display enables simple, user friendly operation.
Efficient Performance
Finish washing 24 samples in as little as 3 minutes
Achieve optimal corpuscle dryness by setting desired decanting speed
Improve corpuscle washing with optional overflow method during centrifugation step
User-Friendly Design
Save time with pre-set programs in automatic mode
Four stage display: Wash, Centrifuge, Decant, Agitate
Manual mode available to wash the cells step-by-step, allowing closed monitoring of washing process
Tube racks with red and blue number labeling for easy sample balancing
Safe Operation
Automatic alerts for low or disrupted saline level and for a completed run
View port on top of unit is available for speed calibration
Reduces risk of cross-contamination with the saline distributor mounted directly on top of the rotor
Stainless steel rotor body enhances system durability
Low-maintenance design with easy-to-change pump tubing
Cleaning convenience with easy-to-remove catch basin, rotor and rotating bowl
Efficient Performance
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Microplate Washers Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of CW3 Cell Washer
Clinical Centrifuge Solutions
Designed for solid reliability and quiet operation, Thermo Scientific™ clinical centrifuge solutions fit in your lab with their compact footprints and stand out with outstanding performance and ergonomics.
Efficient and Reliable Blood Cell Washing Procedures
The Thermo Scientific CW3 cell washer is designed to simplify operation, increasing the efficiency of general laboratory personnel or blood bank technologists, while providing reproducibility, without impacting quality or increasing reagent costs.
General Specifications
There are no General Specifications available.
Series Modals
Thermo Scientific - 75007400
[+] View Model Specifications| Depth | 45 |
| Height | 41 |
| Width | 37 |
| Power Requirements | 120V 60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
12 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Includes 12-place rotor assembly with distributor Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
Thermo Scientific - 75007401
[+] View Model Specifications| Depth | 45 |
| Height | 41 |
| Width | 37 |
| Power Requirements | 220/230V 50/60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
12 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Includes 12-place rotor assembly with distributor Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
Thermo Scientific - 75007402
[+] View Model Specifications| Depth | 45 cm |
| Height | 41 cm |
| Width | 37 cm |
| Power Requirements | 120V 60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
24 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Includes 24-place rotor assembly with distributor Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
Thermo Scientific - 75007403
[+] View Model Specifications| Depth | 45 |
| Height | 41 |
| Width | 37 |
| Power Requirements | 220/230V 50/60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
24 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Includes 24-place rotor assembly with distributor Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
Thermo Scientific - 75007404
[+] View Model Specifications| Depth | 45 |
| Height | 41 |
| Width | 37 |
| Power Requirements | 120V 60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
24 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
Thermo Scientific - 75007405
[+] View Model Specifications| Depth | 45 |
| Height | 41 |
| Width | 37 |
| Power Requirements | 220/230V 50/60Hz |
| Weight | 28 kg |
| Additional Model Specifications | Capacity
24 tubes Max. RCF 1,180 x g (centrifuge); 190 x g (wash) Max. Speed 3000rpm (centrifuge); 200rpm (wash); 350 to 500rpm (decant) Run Time Automatic: 1 to 99 sec. (1 sec. increments); Manual: 1 to 999 sec. (1 sec. increments); 1 to 9 cycle settings Certifications/Compliance CE, CSA, FDA class 2, IVD compliant Type Cell washer Temperature Range Ambient temperature +2° to +35°C Noise Level <53dbA Standards IEC 61010-1 , IEC 61010-2-020, EN ISO 13485 (refer to manual for more details) Warranty 2 years Other Functions 4-stage display: Wash, Centrifuge, Decant, Agitate; End of run notification: 5 selectable melodies, electronic beeps or no sound; Safety devices: Door interlock, dual-overspeed detector, saline level sensor |
