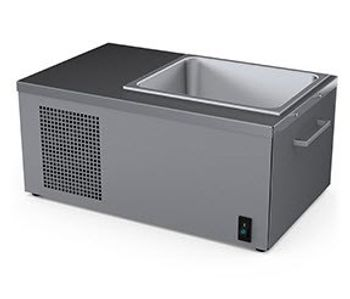

PolyScience - 13L Refrigerated Open Tank
Manufactured by PolyScience
No Documents
Refrigerated circulating bath
Combine with the MX Immersion Circulator to create a refrigerated circulating bath.
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of 13L Refrigerated Open Tank
- Continuous cooling to 0°C * Designed to run at maximum cooling; required heated thermostat for temperature control * Ideal for applications where bath temperatures at or near ambient are required * Insulated stainless steel tank * Cool Command™
General Specifications
| Depth | 10 in |
| Integrated Bath | 1 |
| Height | 22 in |
| Width | 13.5 in |
| Power Requirements | 120/60/1/13 (VAC/Hz/Ph/A) |
| Temperature System | Chilling |
Additional Specifications
Working Temperature Range 0° to 150° C
Tank Material
Stainless Steel
Temperature Control Continuous Cooling to 0°C
Electrical Requirements 120/60/1/13 (VAC/Hz/Ph/A)
240/50/1/1.5 (VAC/Hz/Ph/A)
Cooling Capacity @ 0°C 90 W (60Hz)/75 W (50hz)
Cooling Capacity @ +10°C 270 W (60Hz)/225 W (50Hz)
Cooling Capacity @ +20°C (W) (50hz) 400 W (60Hz)/330 W (50Hz)
Working Access (L x W x D) 9 x 11.75 x 7.75 in
22.9 x 29.8 x 19.7 cm
Overall Dimensions (L x W x D) 13.5 x 22 x 10 in
34.3 x 55.9 x 25.4 cm
60Hz Part Number
T13RSA11B
50Hz Part Number T13RSA12E
