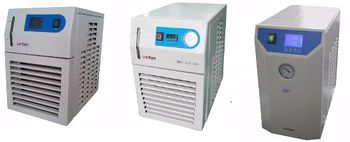

LabTech - H series water recirculating chillers
Combining operational excellence and technological expertise with an intimate understanding of customer's needs,...
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of H series water recirculating chillers
v High Energy Efficiency
“Hot gas bypass” technology routes back the hot, uncondensed refrigerant through a reservoir coil, thus eliminating on/off cycling of compressors and the addition of energy-wasting heaters. This method ensures better temperature control and greater energy efficiency.
v Accurate Temperature Control
P.I.D. is a dynamic temperature control technique through proportional, integrative and differential control.
v High Quality and Long Lifespan
Reliable components and top materials evaluated by the strict quality control procedure make LabTech chillers more solid and durable.
v High Performance and Quiet Operation
LabTech chillers ensure quiet operation and low water consumption while providing rapid and powerful cooling ability.
v Operation Safely and Environmental Friendly
Intelligent alarm functions ensure safe working condition for your instruments. The refrigerant of CFC-free R134A cryogen is compatible with international environmental standards.
v Best Quality/Price Ratio in the Market
General Specifications
There are no General Specifications available.
Series Modals
LabTech - H150-1000
[+] View Model Specifications| Depth | 22 |
| Flow Rate | 6.4 L/min |
| Height | 21 |
| Temperature Range | 8 to 35 °C |
| Width | 15 |
| Weight | 112 lbs |
| Part Number | LW1000 |
| Additional Model Specifications |
LabTech - H150-1000LT
[+] View Model Specifications| Depth | 360 in |
| Flow Rate | 6.4 L/min |
| Height | 590 in |
| Temperature Range | -20 to 35 °C |
| Width | 560 in |
| Weight | 51 lbs |
| Part Number | LW1000LT |
| Additional Model Specifications |
LabTech - H150-1500
[+] View Model Specifications| Depth | 27 |
| Flow Rate | 6.4 L/min |
| Height | 23 |
| Temperature Range | 8 to 35 °C |
| Width | 15 |
| Weight | 172 lbs |
| Part Number | LW1500 |
| Additional Model Specifications |
LabTech - H150-2100
[+] View Model Specifications| Depth | 29 |
| Flow Rate | 12.1 L/min |
| Height | 26 |
| Temperature Range | 8 to 35 °C |
| Width | 18 |
| Weight | 203 lbs |
| Part Number | LW2100 |
| Additional Model Specifications |
LabTech - H150-2100LT
[+] View Model Specifications| Depth | 740 in |
| Flow Rate | 12.1 L/min |
| Height | 700 in |
| Temperature Range | -20 to 35 °C |
| Width | 460 in |
| Weight | 92 lbs |
| Additional Model Specifications |
LabTech - H150-3000
[+] View Model Specifications| Depth | 29 in |
| Flow Rate | 12.1 L/min |
| Height | 26 in |
| Temperature Range | 8 to 35 °C |
| Width | 18 in |
| Weight | 203 lbs |
| Part Number | LW3000 |
| Additional Model Specifications |
LabTech - H150-5000
[+] View Model Specifications| Depth | 28 in |
| Flow Rate | 17.1 L/min |
| Height | 44 in |
| Temperature Range | 8 to 35 °C |
| Width | 25 in |
| Weight | 374 lbs |
| Part Number | LW5000 |
| Additional Model Specifications |
LabTech - H150-7000
[+] View Model Specifications| Depth | 28 in |
| Flow Rate | 17.1 L/min |
| Height | 44 in |
| Temperature Range | 8 to 35 °C |
| Width | 25 in |
| Weight | 374 lbs |
| Part Number | LW7000 |
| Additional Model Specifications |
LabTech - H150-9000
[+] View Model Specifications| Depth | 25 in |
| Flow Rate | 17.1 L/min |
| Height | 44 in |
| Temperature Range | 8 to 35 °C |
| Width | 28 in |
| Weight | 396 lbs |
| Additional Model Specifications |
LabTech - H50-500
[+] View Model Specifications| Depth | 19 in |
| Flow Rate | 3.5 L/min |
| Height | 19 in |
| Temperature Range | -5 to 35 °C |
| Width | 8 in |
| Weight | 62 lbs |
| Part Number | LW500 |
| Additional Model Specifications |
