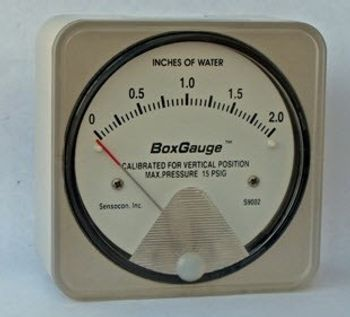

The Series S9000 Differential Pressure BoxGauge™ can be used to measure positive, negative, and differential pressure. It was designed with the intention of creating a low-cost product that could be quickly and easily surface mounted. The resulting BoxGauge™ can mount to any wall or vertical flat surface without any additional kits, special mounting brackets, or optional hardware.

The low cost, compact, easy to mount design makes it a well suited replacement for liquid filled manometers or other differential pressure gauges. The box shape also allows the gauge to sit on any flat horizontal surface making it an ideal choice for a portable differential pressure gauge. The BoxGauge™ features a large 3” gauge face that is easy to read and gives an overall accuracy of 5%. The product offers additional versatility with pressure connections at both the top and the back of the gauge for 3/16” flexible tubing.

The Sensocon BoxGauge™ is ideal for applications such as monitoring filter status, duct static pressure, paint booths, dust collectors, fan and blower pressure, or other HVAC equipment.
