This product is Discontinued

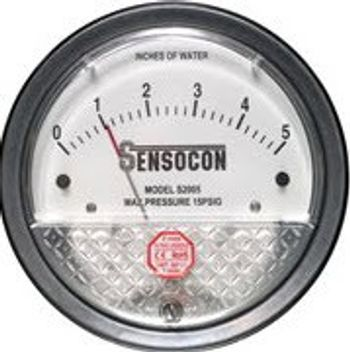

Sensocon - Series P2000 Differential Pressure Gauge
Manufactured by Sensocon
No Documents
The P2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%.
The P2000 gage can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pump Accessories Service ProvidersView All (3)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Additional Specifications
Pressure Limits -20" Hg to 15 PSI (-0.677 bar to 1.034 bar)
Media compatibility Air and compatible gasses
Accuracy +/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C)
Temperature Ranges 20° to 140°F (-7° to 60°C)
Housing Material ABS case, bezel, and cover
Process Connection 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight 10 oz (283 g)
Accessories Two 1/8" NPT barbed fittings, two 1/8" NPT plugs, and three mounting tabs and screws
