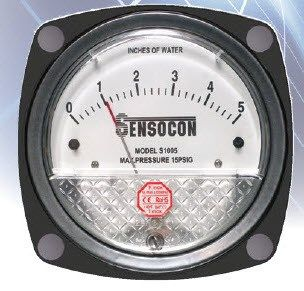

Sensocon - Series S1000 Front Mount Differential Pressure Gauge

Manufactured by Sensocon

No Documents

The S1000 is a diaphragm operated differential pressure gauge for measuring positive, negative, or differential pressure.

The S1000 is a diaphragm operated differential pressure gauge for measuring positive, negative, or differential pressure. The S1000 was designed to allow quick installation saving time and money. This includes easy front mounting with 4 screws without any additional hardware required, and quick tubing connections with molded-in pressure fittings. The Series S1000 Front Mount Differential Pressure Gauge has a span adjustment on the back of the gauge for calibration adjustments. In addition to the time savings offered by the Series S1000 Differential Pressure Gauge, the gauge is based on the same rugged design as the S2000, which allows for years of trouble free operation.

Active Questions & AnswersAsk a Question

There are no current Discussions

Pump Accessories Service ProvidersView All (3)

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features

There are no Features available.

General Specifications

Weight

510 g

Additional Specifications

Pressure Limits:

-20” Hg to 15 PSI (-0.677 bar to 1.034 bar)

Media Compatibility:

Air and compatible gasses

Accuracy:

+/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C)

Temperature Ranges:

20° to 140°F (-7° to 60°C)

Housing Material:

Die cast aluminum case with ABS flange and acrylic cover

Process Connection:

Duplicate high and low recessed, push on connections for 3/16” tubing – one pair side and one pair back

Weight:

1 lb 2 oz (510 g)

Accessories:

2 connection plugs, 4 mounting screws, 4 screw caps, 2 static pressure connectors, and 3 feet of vinyl tubing

Agency Approvals:

RoHS, CE
