Deltech - ATMOSPHERE ENVELOPE ELECTRIC LIFT SQUARE BOTTOM LOAD FURNACES
Manufactured by Deltech
No Documents

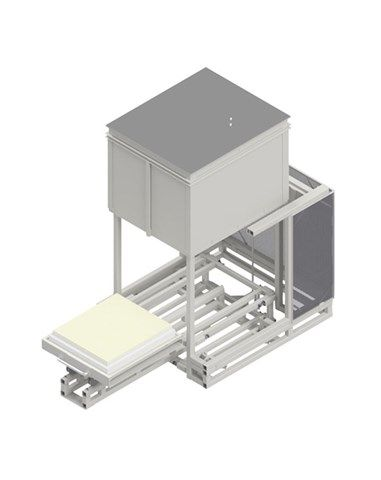

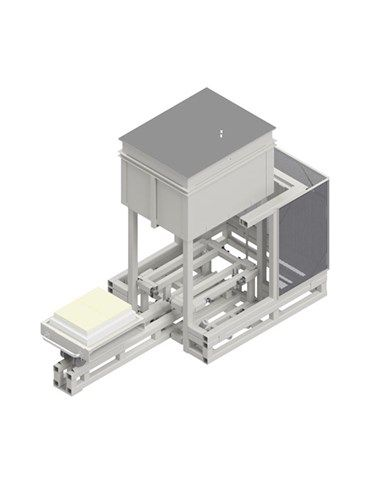

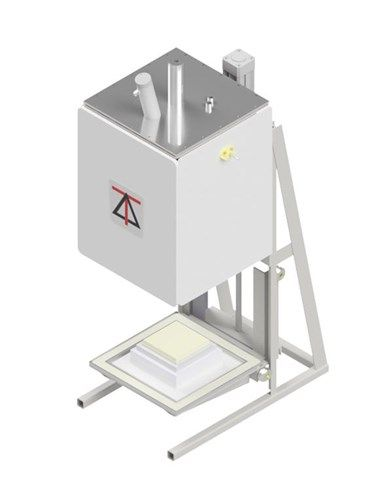

Deltech bottom load furnaces are available in octagonal (BL) and rectangular (SBL) workspace designs.
Deltech bottom load furnaces are available in octagonal (BL) and rectangular (SBL) workspace designs. Most models for operation at 1300° C and above are resistance heated using either silicon carbide or molydisilicide heating elements. The highest quality fiberboard and blanket materials are used for insulation. Our unique impact-resistant fiberboard exterior design facilitates convection cooling (no fans required) while keeping the outer surfaces cool to the touch for operator safety. Your choice of pneumatic (100 psi required) or electric lifts. The pneumatic systems are variable speed; the electric actuator has a fixed travel rate of approximately two seconds per inch (2.5cm).
Options include programmable door operation; forced air and exhaust vent flaps to facilitate binder burnout, for faster cooling, or to increase airflow as needed to meet process requirements.
Options include programmable door operation; forced air and exhaust vent flaps to facilitate binder burnout, for faster cooling, or to increase airflow as needed to meet process requirements.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Furnaces Service ProvidersView All (8)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Deltech - DT-29-SBLE-AE-12 (1600 DEG C)
[+] View Model Specifications| Depth | 36 in |
| Width | 26 in |
| Power Requirements | 15 kW |
| Weight | 385 lbs |
| Additional Model Specifications | Workspace Size
12″ (305mm) cubed |
Deltech - DT-29-SBLE-AE-16 (1600 DEG C)
[+] View Model Specifications| Depth | 42 in |
| Height | 64 in |
| Width | 35 in |
| Power Requirements | 20kW |
| Weight | 510 lbs |
| Additional Model Specifications | Workspace Size
16″ (406mm) cubed |
Deltech - DT-29-SBLE-AE-18 (1600 DEG C)
[+] View Model Specifications| Depth | 51 in |
| Height | 77 in |
| Width | 50 in |
| Power Requirements | 36kW |
| Weight | 580 lbs |
| Additional Model Specifications | Workspace Size
18″ (457mm) cubed |
Deltech - DT-29-SBLE-AE-24 (1600 DEG C)
[+] View Model Specifications| Depth | 64 in |
| Height | 100 in |
| Width | 60 in |
| Power Requirements | 50 kW |
| Weight | 770 lbs |
| Additional Model Specifications | Workspace Size
24″ (610mm) cubed |
Deltech - DT-29-SBLE-AE-36 (1600 DEG C)
[+] View Model Specifications| Depth | 76 in |
| Height | 125 in |
| Width | 72 in |
| Power Requirements | 90 kW |
| Weight | 1160 lbs |
| Additional Model Specifications | Workspace Size
36″ (914mm) cubed |
Deltech - DT-29-SBLE-AE-6 (1600 DEG C)
[+] View Model Specifications| Depth | 26 |
| Width | 17 |
| Power Requirements | 6 kW |
| Weight | 225 |
| Additional Model Specifications | Workspace Size
6″ (152mm) cubed |
Deltech - DT-29-SBLE-AE-8 (1600 DEG C)
[+] View Model Specifications| Depth | 28 in |
| Height | 44 in |
| Width | 19 in |
| Power Requirements | 6 kW |
| Weight | 275 |
| Additional Model Specifications | Workspace Size
8″ (203mm) cubed |
Deltech - DT-31-SBLE-AE-12 (1700 DEG C)
[+] View Model Specifications| Depth | 36 in |
| Width | 26 in |
| Power Requirements | 15 kW |
| Weight | 385 lbs |
| Additional Model Specifications | Workspace Size
12″ (305mm) cubed |
Deltech - DT-31-SBLE-AE-16 (1700 DEG C)
[+] View Model Specifications| Depth | 42 in |
| Height | 64 in |
| Width | 35 in |
| Power Requirements | 20kW |
| Weight | 510 lbs |
| Additional Model Specifications | Workspace Size
16″ (406mm) cubed |
Deltech - DT-31-SBLE-AE-18 (1700 DEG C)
[+] View Model Specifications| Depth | 51 in |
| Height | 77 in |
| Width | 50 in |
| Power Requirements | 36kW |
| Weight | 580 lbs |
| Additional Model Specifications | Workspace Size
18″ (457mm) cubed |
Deltech - DT-31-SBLE-AE-24 (1700 DEG C)
[+] View Model Specifications| Depth | 64 in |
| Height | 100 in |
| Width | 60 in |
| Power Requirements | 50 kW |
| Weight | 770 lbs |
| Additional Model Specifications | Workspace Size
24″ (610mm) cubed |
Deltech - DT-31-SBLE-AE-36 (1700 DEG C)
[+] View Model Specifications| Depth | 76 in |
| Height | 125 in |
| Width | 35 in |
| Power Requirements | 90 kW |
| Weight | 1160 lbs |
| Additional Model Specifications | Workspace Size
36″ (914mm) cubed |
Deltech - DT-31-SBLE-AE-6 (1700 DEG C)
[+] View Model Specifications| Depth | 26 in |
| Width | 17 in |
| Power Requirements | 6 kW |
| Weight | 225 lbs |
| Additional Model Specifications | Workspace Size
6″ (152mm) cubed |
Deltech - DT-31-SBLE-AE-8 (1700 DEG C)
[+] View Model Specifications| Depth | 28 in |
| Height | 44 in |
| Width | 19 in |
| Power Requirements | 6 kW |
| Weight | 275 lbs |
| Additional Model Specifications | Workspace Size
8″ (203mm) cubed |
Deltech - DT-33-SBLE-AE-12 (1800 DEG C)
[+] View Model Specifications| Depth | 36 in |
| Width | 26 in |
| Power Requirements | 15 kW |
| Weight | 385 lbs |
| Additional Model Specifications | Workspace Size
12″ (305mm) cubed |
Deltech - DT-33-SBLE-AE-16 (1800 DEG C)
[+] View Model Specifications| Depth | 42 in |
| Height | 64 in |
| Width | 35 in |
| Power Requirements | 20kW |
| Weight | 510 lbs |
| Additional Model Specifications | Workspace Size
16″ (406mm) cubed |
Deltech - DT-33-SBLE-AE-18 (1800 DEG C)
[+] View Model Specifications| Depth | 42 in |
| Height | 64 in |
| Width | 35 in |
| Power Requirements | 20kW |
| Weight | 510 lbs |
| Additional Model Specifications | Workspace Size
16″ (406mm) cubed |
Deltech - DT-33-SBLE-AE-24 (1800 DEG C)
[+] View Model Specifications| Depth | 64 in |
| Height | 100 in |
| Width | 60 in |
| Power Requirements | 50 kW |
| Weight | 770 lbs |
| Additional Model Specifications | Workspace Size
24″ (610mm) cubed |
Deltech - DT-33-SBLE-AE-36 (1800 DEG C)
[+] View Model Specifications| Depth | 76 in |
| Height | 125 in |
| Width | 72 in |
| Power Requirements | 90 kW |
| Weight | 1160 lbs |
| Additional Model Specifications | Workspace Size
36″ (914mm) cubed |
Deltech - DT-33-SBLE-AE-6 (1800 DEG C)
[+] View Model Specifications| Depth | 26 |
| Width | 17 |
| Power Requirements | 6 kW |
| Weight | 225 |
| Additional Model Specifications | Workspace Size
6″ (152mm) cubed |
Deltech - DT-33-SBLE-AE-8 (1800 DEG C)
[+] View Model Specifications| Depth | 28 in |
| Height | 44 in |
| Width | 19 in |
| Power Requirements | 6 kW |
| Weight | 275 lbs |
| Additional Model Specifications | Workspace Size
8″ (203mm) cubed |
