This product is Discontinued

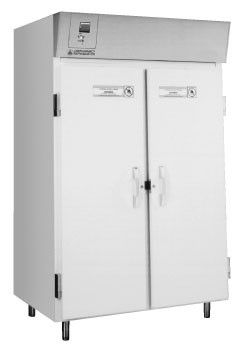

Kelvinator - Flammable Material Storage
Manufactured by Kelvinator
Kelvinator Scientific FMS cabinets meet the highest safety standards for ether, organic solvents and other fla...
Kelvinator Scientific FMS cabinets meet the highest safety standards
for ether, organic solvents and other flammable material.
All cabinets comply with the requirements for flammable material storage as defined in section 1-3 of the NFPA Safety Standards for Listing No. UL-FMS-SA-5763.
Capacities of the four models range from 24.5 to 49.1 cu. ft. (694 to 1390 liters). Cabinets offer a temperature range of 13°C to -30°C (55°F to -22°F). New units have adjustable cantilever shelves and sealed, no-spark interiors.
Solid urethane foam insulated doors have built-in keylocks for added security, and hold-open feature for ease of loading and unloading.
Cabinet construction is of heavy gauge cold rolled steel for the exterior and galvalume on the interior. Urethane insulation binds inner and outer walls into single unit for greater strength and thinner wall construction for more working capacity.
Interior and exterior surfaces are finished with high luster powder coat.
for ether, organic solvents and other flammable material.
All cabinets comply with the requirements for flammable material storage as defined in section 1-3 of the NFPA Safety Standards for Listing No. UL-FMS-SA-5763.
Capacities of the four models range from 24.5 to 49.1 cu. ft. (694 to 1390 liters). Cabinets offer a temperature range of 13°C to -30°C (55°F to -22°F). New units have adjustable cantilever shelves and sealed, no-spark interiors.
Solid urethane foam insulated doors have built-in keylocks for added security, and hold-open feature for ease of loading and unloading.
Cabinet construction is of heavy gauge cold rolled steel for the exterior and galvalume on the interior. Urethane insulation binds inner and outer walls into single unit for greater strength and thinner wall construction for more working capacity.
Interior and exterior surfaces are finished with high luster powder coat.
Active Questions & AnswersAsk a Question
Freezers Service ProvidersView All (19)
Documents & ManualsView All Documents
Features of Flammable Material Storage
- One & Two-Door Refrigerators, Freezers and Combinations
- Temperature Range 13°C to -30°C (55°F to -22°F)
- Capacities From 27.3 cu. ft. to 49.1 cu. ft.
- White Powder Coat Exteriors and Interiors
General Specifications
There are no General Specifications available.
Additional Specifications
Doors Keylock: single solid
Legs: 6
Series Modals
Kelvinator - BT30CWFMS
[+] View Model Specifications| Depth | 38.0625 in |
| Height | 83.75 in |
| Internal Depth | 29.625 in |
| Freezer Orientation | Upright |
| Internal Height | 60.625 in |
| Width | 31 in |
| Freezer Type | Flammable Material |
| Internal Width | 26.25 in |
| Minimum Temperature | -30 °C |
| Weight | 600 lbs |
| Number of Shelves | cantilever, 4 plus bottom rack |
| Shipping Weight | 795 lbs |
| Freezer Capacity | 27.3 cu. ft. |
| Additional Model Specifications | Doors Keylock: single solid
Legs: 6" adjustable Interior Lighting: none Insulation, Urethane walls 2 3/8” foam door 2” foam Refrigerant: R404a Compressor: 1/3 hp Condenser: radiant shell Air Circulation: gravity Refrigerant Control: capillary Evaporator: cold wall Temperature Control: digital electronic Defrost: manual Running Amps: 2.6 Supply Plug: 5-15 NEMA Shipping: Cubic Ft. 87 |
Kelvinator - BT30RFFMS
[+] View Model Specifications| Depth | 38.0625 in |
| Height | 83.75 in |
| Internal Depth | 29.625 in |
| Freezer Orientation | Upright |
| Internal Height | 60.625 in |
| Width | 31 in |
| Freezer Type | Flammable Material |
| Internal Width | 26.25 in |
| Minimum Temperature | -12 °C |
| Weight | 610 lbs |
| Freezer Temperature Range | 4 to -12 °C |
| Number of Shelves | cantilever, 4 plus bottom rack |
| Shipping Weight | 850 lbs |
| Additional Model Specifications | Capacity:
R: 21.9 cu. ft. F: 2.7 cu. ft. Doors Keylock: single solid w/add’l inner freezer door Legs: 6" adjustable Interior Lighting: none Insulation, Urethane walls 2 3/8” foam door 2” foam Refrigerant: R404a Compressor: 1/4 hp Condenser: radiant shell Air Circulation: gravity Refrigerant Control: capillary Evaporator: plate and tube Temperature Control: digital electronic Defrost: manual Running Amps: 2.1 Supply Plug: 5-15 NEMA Shipping: Cubic Ft. 87 |
Kelvinator - BT30RSFMS
[+] View Model Specifications| Depth | 38.0625 in |
| Height | 83.75 in |
| Internal Depth | 29.625 in |
| Freezer Orientation | Upright |
| Internal Height | 60.625 in |
| Width | 31 in |
| Freezer Type | Flammable Material |
| Internal Width | 26.25 in |
| Minimum Temperature | 3 °C |
| Weight | 585 lbs |
| Freezer Temperature Range | 3 to 13 °C |
| Number of Shelves | cantilever, 4 plus bottom rack |
| Shipping Weight | 795 lbs |
| Freezer Capacity | 27.3 cu. ft. |
| Additional Model Specifications | Doors Keylock: single solid
Legs: 6" adjustable Interior Lighting: none Insulation, Urethane walls 2 3/8” foam door 2” foam Refrigerant: R404a Compressor: 1/4 hp Condenser: fin and tube Air Circulation: forced air Refrigerant Control: capillary tube Evaporator: fin and tube, forced air Temperature Control: digital electronic Defrost: cycle defrost Running Amps: 5.0 Supply Plug: 5-15 NEMA Shipping: Cubic Ft. 87 |
Kelvinator - BT50RSFMS
[+] View Model Specifications| Depth | 38.0625 in |
| Height | 83.75 in |
| Internal Depth | 29.625 in |
| Freezer Orientation | Upright |
| Internal Height | 60.625 in |
| Width | 52 in |
| Freezer Type | Flammable Material |
| Internal Width | 47.25 in |
| Minimum Temperature | 3 °C |
| Weight | 794 lbs |
| Freezer Temperature Range | 3 to 13 °C |
| Number of Shelves | cantilever, 8 plus 2 bottom racks |
| Shipping Weight | 1015 lbs |
| Freezer Capacity | 49.1 cu. ft. |
| Additional Model Specifications | Doors Keylock: double solid
Legs: 6" adjustable Interior Lighting: none Insulation, Urethane walls 2 3/8” foam door 2” foam Refrigerant: R404a Compressor: 1/4 hp Condenser: fin and tube Air Circulation: forced air Refrigerant Control: capillary tube Evaporator: fin and tube, forced air Temperature Control: digital electronic Defrost: cycle defrost Running Amps: 5.0 Supply Plug: 5-15 NEMA Shipping: Cubic Ft. 135 |
