Myers-Vacuum - GTC-365

Manufactured by  Myers-Vacuum
Follow this Equipment

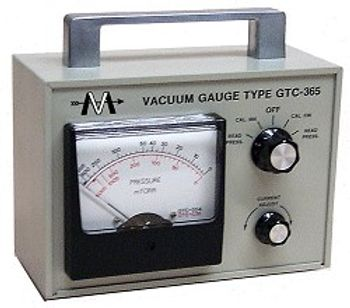

The GTC-365 is a portable, battery powered thermocouple vacuum gauge which is supplied complete with 1.5 volt “D” cell battery, type GTC-036...

The GTC-365 is a portable, battery powered thermocouple vacuum gauge which is supplied complete with 1.5 volt “D” cell battery, type GTC-036 thermocouple sensing tube and tube connecting cable.
Active Questions & AnswersAsk a Question

There are no current Discussions

Vacuum Gauges / Controllers Service ProvidersView All (5)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of GTC-365
  • Measures from 0 – 5000 mTorr
  • Battery operated – from 1.5V “D” cell supplied with gauge.
  • Portable – rugged, wrap-around case with top handle which also serves as storage loop for sensor cable
  • Easy to read – for either tube type, as identified on scale and position of selector switch; 0-5000 milliTorr with GTC-036 (supplied), 0-1000 milliTorr with GTC-004
  • Sensor tube mounts with 3/8″ tube port or 1/8″ FPT. Adaptors available for other connections.
    • General Specifications
    Depth 4 in
    Height6.75 in
    Width 6.625 in
    Additional Specifications

    Type of Mounting:
    Cabinet (panel kit available)

    Power Input:
    1.5 volts (D-cell)

    Meter Scale Ranges (with GTC-036 sensor):
    0-5000 milliTorr; (with GTC-004 sensor) 0-1000 milliTorr

    Sensor Type:
    STD GTC-036

    Tube Cable Length:
    10′
