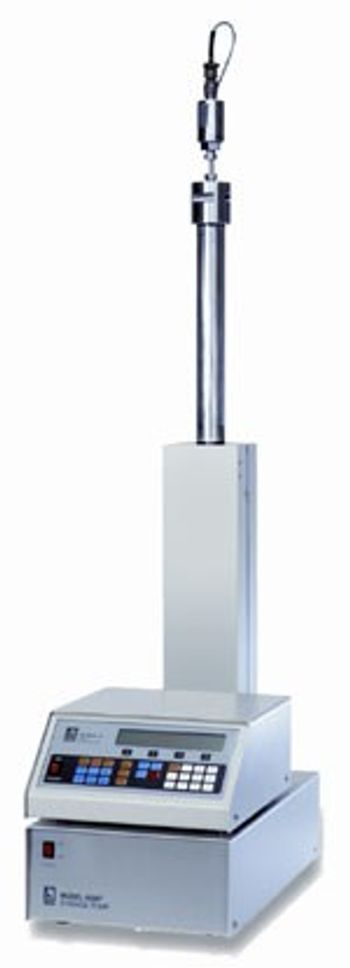

Teledyne Isco - 65HP

Manufactured by  Teledyne Isco
Follow this Equipment

High Pressure Syringe Pump

The new 65HP is our best pump for very high pressures or very low flow rates.
Active Questions & AnswersAsk a Question

There are no current Discussions

Lab Pumps Service ProvidersView All (3)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of 65HP
  • 65HP pump has 1/4" F-250 fittings for secure high-pressure connections.
  • Rugged single-ratio drive train has auto-lubricating gears to assure long life and low maintenance.
  • Each Isco syringe pump is bench tested at the factory.
  • Cylinder wash system protects the seals from deposits.
  • Exclusive "Smart Key" controller. All Isco D-series and HP pumps use the same controller that can operate any four pump modules, either independently or together. Operating modes include:     - Single pump independent constant flow or pressure     - Single pump flow - or pressure - ramp programming     - Single pump dispensing     - Dual pump continuous constant flow or pressure     - Dual pump concentration gradients     - Four-pump configured systems
  • RS-232/485 serial interface for computer control or monitoring of operating parameters.
  • Redundant safety is designed in. All D-Series and HP pumps have mechanical and electrical fail-safes, in addition to the factory default or user-set limits.
  • Corrosion resistance. Nitronic 50 - the standard material for cylinders, pistons, and caps - is an austenitic stainless steel with outstanding strength and corrosion resistance.
  • Standard seals are heavy-duty, graphite-impregnated Teflon, providing very long life under harsh operating conditions.
    • General Specifications
    Depth 27 cm
    Height47 cm
    Width 101 cm
    Additional Specifications

    Capacity
    67.97 mL/min

    Flow Range
    0.00001 - 25 mL/min

    Flow Accuracy
    ± 0.3% of setpoint (Maximum 0.25 µL/min seal leakage)

    Pressure Range
    10 - 24,000 psi (0.7 - 1,654.74 bar)

    Plumbing Ports
    1/4" Valco
