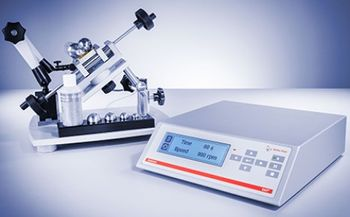

Anton Paar - Calotest Industrial (CAT²i)
Manufactured by Anton Paar
No Documents
The Industrial Calotest measures the thickness of coatings in a typical time of 2 to 5 minutes. In this industrial...
The Industrial Calotest measures the thickness of coatings in a typical time of 2 to 5 minutes. In this industrial version the motor is fixed on a hydraulic arm, allowing the user to target samples of unlimited size. It is the ideal instrument for a quick and precise determination of coating thickness on common industrial coated components.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of Calotest Industrial (CAT²i)
High-performance analysis for industrial applications
- Spherical abrasion test method
- Determination of coating thickness
- Applicable to a wide variety of materials
- Fine and extra fine polishing slurries
- No sample size limitation
- Available in “compact” or ”industrial” configurations
Options:
- Optical measuring system with automatic thickness calculation
General Specifications
There are no General Specifications available.
Additional Specifications
Shaft speed: 10 rpm to 3000 rpm
Abrasion time ranges: 1 sec to 10000 sec
Standard ball diameters: 10, 15, 20, 25.4, 30 mm
International standards: ISO 1071-2, VDI 3198
