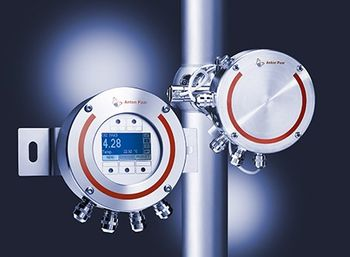

Anton Paar - Operating Terminal
Manufactured by Anton Paar
No Documents
The Operating Terminal (OT) and the Remote Operating Terminal (ROT) are flexible evaluation units for the Anton Paar Smart Sensors used in viscosity..
The Operating Terminal (OT) and the Remote Operating Terminal (ROT) are flexible evaluation units for the Anton Paar Smart Sensors used in viscosity measurement (L-Vis 510) for dynamic and kinematic viscosity and in CO2 measurement for beverages (Carbo 510) such as beer, wine or FABs. The OT is directly mounted on the Smart Sensor, the ROT and the Smart Sensor are separated units with a distance of up to 250 m. The OT and ROT provide several interfaces for external communication.
Active Questions & AnswersAsk a Question
There are no current Discussions
Bulk Density Tester Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of Operating Terminal
Flexible Connection to your Plant
Perfect integration via various fieldbus and analog, digital interfaces
Optical buttons for easy handling in harsh environment
Limit Monitoring
Alarms help to prevent out-of-spec production
Up to 30 products can be selected via fieldbus
Installation of Remote Operating Terminal
Perfect visibility for the operator
No extra stainless steel housing necessary
Small sized ROT housing for optimal installation at narrow places
Up to 250 m distance between sensor and ROT possible
General Specifications
| Depth | 60 mm Display |
| Height | 35 mm Display |
| Power Requirements | DC 24 V SELV min 0.2 A |
Additional Specifications
Analog Output
2 x 4 to 20 mA active
Fieldbuses
PROFINET IO
PROFIBUS DP
EtherNet IP
Modbus TCP
DeviceNet
Sensor Input
Carbo 510, L-Vis 510, L-Vis 520 Ex, L-Rix 510
Digital Input
For filler stop, detection of empty line
External Product Selection
Via fieldbuses
Digital Output
For limit monitoring or error output
