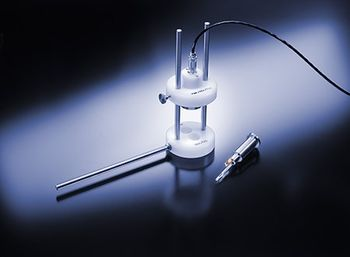

Anton Paar - ABA 4
Manufactured by Anton Paar
No Documents
The automatic Abel closed-cup tester measures the flash point, the lowest temperature at which the vapors of a sample ignite upon the application of..
The automatic Abel closed-cup tester measures the flash point, the lowest temperature at which the vapors of a sample ignite upon the application of an ignition source. The tester can also be used to detect the ability of a sample to yield flammable vapors when maintained at an equilibrium temperature by the flash/no flash method.
ABA 4 is suitable for flash point applications of jet fuels, solvents, chemicals, etc.
ABA 4 is suitable for flash point applications of jet fuels, solvents, chemicals, etc.
Active Questions & AnswersAsk a Question
There are no current Discussions
Other Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of ABA 4
Benefits at a Glance
Two cooling systems with Peltier elements according to the new ISO 13736 standard: an economical air-cooled model and a low-temperature version with external water cooling
The two ignition systems in each unit give you the flexibility to work with an electric or gas igniter: if the gas ignition is used, the electric igniter will automatically relight the gas flame during the test, if necessary
The patented One-Twist swivel-around multi-function head guarantees the safe and easy one-hand connection of all sensors and actuators such as the shutter release, stirrer, igniter and detector contacts
An extended measuring range up to 110 °C enables you to go beyond the conventional scope of the Abel method
Convenient Operation
Test initiation by pre-installed standard test methods and ability to customize methods by user-defined programs
Outside flame sensors increase the system’s safety, especially for work with samples that have no conventional flash point but burn outside the test cup (e.g. due to flame-inhibiting components)
Splashproof touch-key panel with large LCD
A multi-detector combines the flash point detector and the temperature probe in a solid housing with a perfectly adjusted immersion depth
A probe verification program checks the proper functioning of the temperature probe and allows a bias adjustment by using a special calibration kit (optional)
Customized User Flexibility
PC-software FPPNet (optional) for convenient remote handling and test data storage
Insulation hood (optional) to protect the cover and shutter assembly from icing during low-temperature flash point tests
Abel-Pensky test insert (optional)
Calibration set (optional)
Stainless steel or small-volume sample cup (optional)
General Specifications
| Depth | 470 mm |
| Height | 470 mm |
| Width | 230 mm |
| Power Requirements | 115 V/230 V, 50 Hz/60 Hz, 180 W (air-cooled) 230 V, 50 Hz/60 Hz or 115 V, 60 Hz, 150 W (liquid-cooled) |
| Weight | 8 kg |
Additional Specifications
Application range
(°C/°F selectable) 10 °C to 110 °C (air-cooled)
-30 °C to 110 °C (liquid-cooled)
Ignition
Gas and electric (interchangeable)
Heating
According to method or user-defined
Stirring
According to method or user-defined
Cooling of Peltier elements
Air-cooled (by built-in fan)
Liquid-cooled (with tap water or circulation cooler)
Flash detection
Thermocouple
Barometric pressure correction
Automatic correction
Safety
Overheat protection, automatic shut-off
Interfaces
2x RS232
Gas supply
50 mbar of propane or butane
