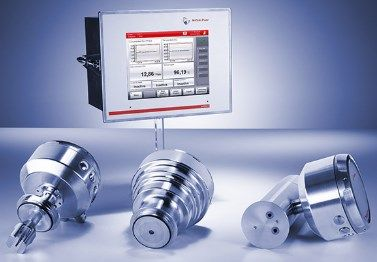

Three measurement technologies to fit your requirements

[i]Density[/i]

[i]L-Dens 7400/7500[/i]

• For extract and Plato monitoring
• Highest accuracy
• Suitable for fiscal measurements
• W-shaped oscillating tube
• Digital signal processing
• New Pico 3000 as transmitter + HMI option
• New mechanical design for reduced size and weight

[i]Sound[/i]

[i]L-Sonic 5100[/i]

• For extract, Plato, and original extract monitoring
• Best value for applications requiring modest accuracy
• EHEDG-certified
• Digital signal processing
• New Pico 3000 as transmitter + HMI option

[i]Refractive index[/i]

[i]L-Rix 510[/i]

• For extract and Plato monitoring
• For pulpy and viscous samples
• EHEDG-certified

Durable – without operating costs

• Precise and drift-free online extract measurement, even with bubble formation or coating build-up
• All Extract/Plato Monitors are maintenance-free, ensuring a long working life
• Accessories for automated cleaning procedures are available

Versatile installation range

Both main line and tank installation are possible.

Cost-optimized monitoring and control with integrated HMI

The new, integrated Pico 3000 process instrumentation controller combines configurability and diagnostics with a simple user interface. Built-in control functions and flexible PLC connectivity give you full control of your product and process specifications at any time.

Improved process capability

The powerful data acquisition and visualization software (client-server) Davis 5 enables you to save all data and alarms, provides statistical process control and graphical trend analysis, and allows product adjustments. Password-protected access to all measuring systems is possible from various locations, while providing powerful reporting and integration with your corporate quality management system.
