Benefits at a Glance

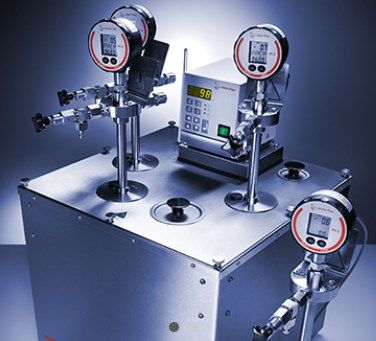

• Digital PA 5-OBA programmable manometers
• Pressure-certified oxidation vessels
• 4 test places for parallel testing
• PC-software for data handling

Convenient Operation

• The PA 5-OBA is a programmable manometer with a digital display and pressure connection. It determines automatically the induction period and checks the leakage stability of the oxidation vessel before starting the test automatically.
• Data can be transferred from the manometer to your PC via an USB interface (cable included)
• The included PC-software PetroNet Standard allows to monitor the numerical and graphical data on the screen.
• Convenient temperature reading with Pt1000 temperature sensor (optional) and correction of the induction period according to the used method

Customized User Flexibility

• Available with liquid bath or dry-heat bath
• Dongle to unlock the PA 5 Professional module of the PetroNet Standard software to allow full access to the programmable parameters of the PA 5 manometers (optional)
• PA 5 manometer pressure calibrator (optional)
• Dry-heat bath calibration set (optional)
• Certified manometers available with manufacturer's calibration certificate or official (DKD) calibration certificate (optional)
• Tool set to ease the pressure vessel opening and closing procedure (optional)
• Support shelf for test vessel (optional)
