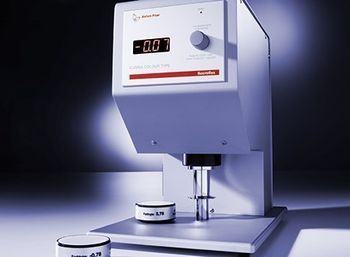

Anton Paar - Sucroflex
Manufactured by Anton Paar
No Documents
The Sucroflex reflactence colorimeter is used for the color classification of white sugar as the most eye-catching quality factor of sugar is its..
The Sucroflex reflactence colorimeter is used for the color classification of white sugar as the most eye-catching quality factor of sugar is its color, which may vary from brilliant white to yellow-brownish tones. ICUMSA, the International Commission for Uniform Methods of Sugar Analysis, has defined a color type scale for color grading of white sugars. It covers a range from 0 to 6, whereby 0 corresponds to a sugar of maximum whiteness, while 6 indicates a highly colored low-grade white sugar.
Active Questions & AnswersAsk a Question
There are no current Discussions
Particle Size Analyzers Service ProvidersView All (2)
Documents & Manuals
There are no Documents or Manuals available.
Features of Sucroflex
Measuring principle
- Photoelectric sphere photometer for measuring the green/red reflectance ratio of crystal sugar
- Based on R(495)/R(620) reflectance ratio measurement at 495 nm and 620 nm
- Measuring range from 0.00 to 6.00 (19.99) ICUMSA - Color Type Units (CTU)
- Calibration facility for the start of the range and the end of the range
Features
- Precise color grading of white crystal sugars according to the ICUMSA color type scale
- Grain size differences have no effect Reproducible results, independent of the operator
General Specifications
There are no General Specifications available.
Additional Specifications
Light Source: Tungsten-halogen lamp 6 V, 10 W, voltage-stabilized, average life 2000 h
Measuring Range: 0 to 19.99 CTU, above 6 by linear extrapolation
Precision
0.01 CTU
Reproducibility: Better than 0.05 CTU
Wavelentgh: 495 nm and 620 nm, tolerance 1 %, bandwidth 20 nm
Power requirements: Self-adapting to any mains voltage of 100/120 V or 220/240 V, 45-65 Hz
Data output: RS-232C
Dimensions / Weight: Width 210 mm, height 315 mm, depth 310 mm, 8.8 kg
