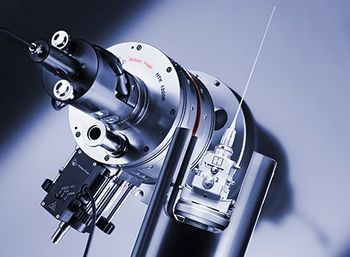

Anton Paar - HTK 1200N
Manufactured by Anton Paar
No Documents
The HTK 1200N Capillary Extension is the first “two-in-one” setup for combined reflection and transmission XRD studies at high temperatures up to 1200
The HTK 1200N Capillary Extension is the first “two-in-one” setup for combined reflection and transmission XRD studies at high temperatures up to 1200 °C.
It turns the HTK 1200N high temperature chamber into a high-end capillary heater for transmission XRD. Benefits include high-temperature homogeneity and excellent temperature control combined with easy capillary handling. It takes only a few minutes for you to convert from the flat sample to the capillary setup, giving you the possibility to choose the optimum beam geometry for every sample.
It turns the HTK 1200N high temperature chamber into a high-end capillary heater for transmission XRD. Benefits include high-temperature homogeneity and excellent temperature control combined with easy capillary handling. It takes only a few minutes for you to convert from the flat sample to the capillary setup, giving you the possibility to choose the optimum beam geometry for every sample.
Active Questions & AnswersAsk a Question
There are no current Discussions
X-ray Diffraction Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of HTK 1200N
One stage for flat samples and capillaries
Conversion of HTK 1200N Oven Chamber into a powerful capillary heater up to 1200 °C
Fast conversion without removing HTK 1200N from the diffractometer
Easy capillary mounting and alignment
PC-operated video microscope for capillary centering
High temperature with excellent accuracy
Very uniform temperature across the irradiated sample volume
High accuracy of temperature measurement
Suitable for a wide variety of samples
Holder for sealed capillaries for highly air-sensitive samples
Holder for unsealed capillaries with a funnel for easy capillary mounting
Open capillary holder to investigate gas-releasing materials
General Specifications
There are no General Specifications available.
Additional Specifications
Operating temperature
HTK 1200N furnace: 25 °C to 1200 °C
Quartz glass capillary: 25 °C to 1000 °C
Borosilicate glass capillary: 25 °C to 700 °C
Special glass capillary: 25 °C to 500 °C
Temperature measurement
Pt 10% RhPt thermocouple
Angle of incidence
1.5 to 88° 2Θ
Capillary dimensions
Diameter: 0.2 to 1 mm
Length:
85 mm
Capillary orientation
Horizontal
