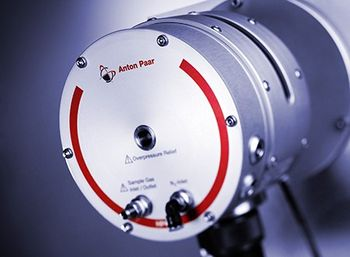

Anton Paar - HPC 900
Manufactured by Anton Paar
No Documents
HPC 900 is a unique high-pressure and high-temperature chamber for in-situ X-ray diffraction studies of gas-solid interactions.
HPC 900 is a unique high-pressure and high-temperature chamber for in-situ X-ray diffraction studies of gas-solid interactions. HPC 900 can be pressurized with hydrogen and many other gases up to 100 bar while heating the sample up to
900 °C. A furnace heater provides uniform sample heating and excellent temperature control. Despite the extreme operating conditions, the sample can be exchanged easily without any tools. HPC 900 opens up completely new possibilities in hydrogen energy research and catalyst development.
900 °C. A furnace heater provides uniform sample heating and excellent temperature control. Despite the extreme operating conditions, the sample can be exchanged easily without any tools. HPC 900 opens up completely new possibilities in hydrogen energy research and catalyst development.
Active Questions & AnswersAsk a Question
There are no current Discussions
X-ray Diffraction Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of HPC 900
Accurate control of sample conditions
Gas pressure up to 100 bar
Sample temperature from 25 °C to 900 °C
Can be operated with a variety of reactive gases, including hydrogen
Fast and uniform sample heating
Reliable temperature measurement right at the sample position
Safe and easy to use
Fast sample exchange without any tools
Removable sample cups for easy sample preparation
Gas-flushed safety shell around the pressurized sample compartment
UL and CE certified
Compact design
Robust and compact design using high quality materials
Fits on most available laboratory diffractometers
Available with automated z-alignment stage for temperature-dependent sample realignment
General Specifications
There are no General Specifications available.
Additional Specifications
Operating temperature
25 °C to 900 °C (depending on gas type and pressure)
Operating pressure
1 bar to 100 bar
Atmospheres
H2, N2, O2, inert gases
2Θ range
0 – 160 ° 2Θ
Chamber transmission
60 % for Mo KΑ radiation
Sample holder
Alumina (Al2O3) or Inconel
Ø10 mm, depth 0.8 mm or 0.4 mm
Measure geometry
Reflection
