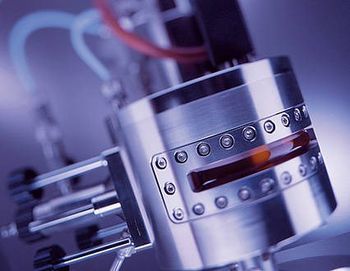

Anton Paar - XRK 900
Manufactured by Anton Paar
No Documents
The XRK 900 reactor chamber is the only heating chamber on the market specifically designed for X-ray diffraction experiments for studies of solid..
The XRK 900 reactor chamber is the only heating chamber on the market specifically designed for X-ray diffraction experiments for studies of solid state and solid state-gas reactions up to 900 °C and 10 bar. It is a unique tool for in-situ X-ray diffraction investigations - unmatched in robustness and performance.
Active Questions & AnswersAsk a Question
There are no current Discussions
X-ray Diffraction Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of XRK 900
Optimal for solid state - gas reactions
Furnace heater for excellent temperature uniformity in the sample
Reliable measurement and control of the sample temperature
Homogeneous flushing and gas flow inside the chamber without dead volumes
Rugged design
High quality materials for a long working life
Housing temperature up to 150 °C to avoid condensation of reaction products
Fits on all common diffractometers
Choice of sample holders
Different materials, all chemically very resistant
Optional sample spinning for good diffraction data quality
Open sample holders for gas extraction through the sample
Easy exchange of samples
General Specifications
There are no General Specifications available.
Additional Specifications
Operating temperature
25 °C to 900 °C
Temperature measurement
NiCr/NiAl thermocouple
Atmospheres
Vacuum (1mbar), air, inert gas, reactive gas
Max. housing temperature
150 °C
Angle of incidence
0 to +165° 2Θ
Max. operating pressure
1 mbar to 10 bar
Sample holder material
Stainless steel or glass ceramics
Sample diameter
max. 14 mm
Measure geometry
Reflection
