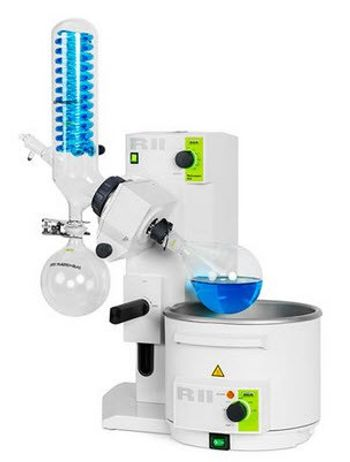

BUCHI Corporation - Rotavapor® R II
Manufactured by BUCHI Corporation
Standard in evaporation
The R II fulfills fundamental needs of classical laboratory evaporation applications without compromising on quality and safety.
Active Questions & AnswersAsk a Question
There are no current Discussions
Rotary Service ProvidersView All (9)
Documents & ManualsView All Documents
Features of Rotavapor® R II
Durable
High longevity due to its sturdy construction and powder coated aluminum housing
Reliable operation thanks to robust design and hand lift
No thermal overload due to heat dissipation
Easy to use
Easy flask and vapor duct removal thanks to the multifunctional Combi-Clip
Easy handling thanks to proven design and quick-action jack
Fast and easy cleaning thanks to quick removal of cordless bath
Customizable
Various glass assemblies and accessories available (e.g. protective shield, valve unit)
Covers further needs with a wide range of complementary products (e.g. Vacuum Pump)
Achieves even better results with the BUCHI vacuum controller
General Specifications
| Bath Dimensions | 285L x 240H x 300D mm |
| Depth | 415 mm |
| Flask Size | 50 to 400 ml |
| Height | 575 mm |
| Bath Volume | 4 L |
| Evaporator Orientation | Vertical |
| Width | 550 mm |
| Power Requirements | 100 - 240 V, 50/60 Hz |
| Rotation Speed | 20 to 280 rpm |
| Peak Power | 1360 W with bath |
| Lift Handle | Manual |
| Weight | 21 kg |
Additional Specifications
IP class: 21
Max. flask weight: 3 kg
Display: no
Seal of approval: UL, CSA
Conformity: CE
[u]Heating Bath[/u]
Operating voltage: 100-120V / 220 - 240 V
Frequency: 50/60 Hz
Power consumption: 1300 W
IP class: 21
Max. flask size: 4 litre
Accuacy: +/- 2°C
Display: Scale 0-100°C, heating on/off
Seal of approval: UL, CSA
Conformity: CE
