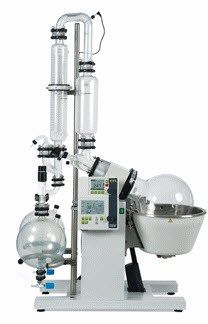

BUCHI Corporation - Rotavapor® R-220
Manufactured by BUCHI Corporation
No Documents
Rotary evaporation is the most commonly used method to remove solvents, as it is an efficient, fast and gentle way of separating liquids.
For the rapid and gentle distillation of up to 20 L flask volumes. Heating bath with a wide temperature range from 20-180ºC for water and oil. Innovative flask fixing, opening and closing with one hand. EasyClamp connection for rapid installation of glassware. Eight glass assemblies available for different processes.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byLP74
Rotary Service ProvidersView All (9)
Documents & Manuals
There are no Documents or Manuals available.
Features of Rotavapor® R-220
Ergonomics
- Patented evaporating flask snap flange coupling allows you to attach a 20L flask with one hand! Efficiency
- Unique EasyClamp couplings allow glass assemblies to be mounted and removed effortlessly - cleaning and maintenance can be done quickly and easily.
- The compact inlet valve can be opened and closed with one hand and allows for precise dosing of the inlet feed. User Friendly
- The clear, functional operating panel makes using the instrument easy and safe. Flexibility

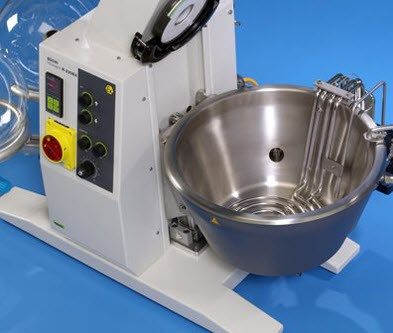

- A wide temperature range of 20°C–180°C. The stainless steel bath has an optimal conical shape that enables rapid and energy-efficient heating. The bath can be used with oil or water for a wide variety of applications. The integrated bath replenishment guarantees a constant bath level without manual interaction.
- 8 different plastic coated glass assemblies for unlimited applications - high or low boiling point solvents, reflux applications, differing height demands, etc."
General Specifications
There are no General Specifications available.
Series Modals
BUCHI Corporation - R-220 EX
[+] View Model Specifications| Depth | 0.75 m |
| Height | 1.8 m |
| Width | 1.25 m |
| Power Requirements | 200V / 230V / 400V |
| Weight | 75 kg |
| Additional Model Specifications | The electrical heating bath enables precise control and high performance - a temperature set-point between 20 °C and 150 °C can be entered via the digital control unit. Maximum product safety is achieved by specifying an upper temperature limit in each case. |

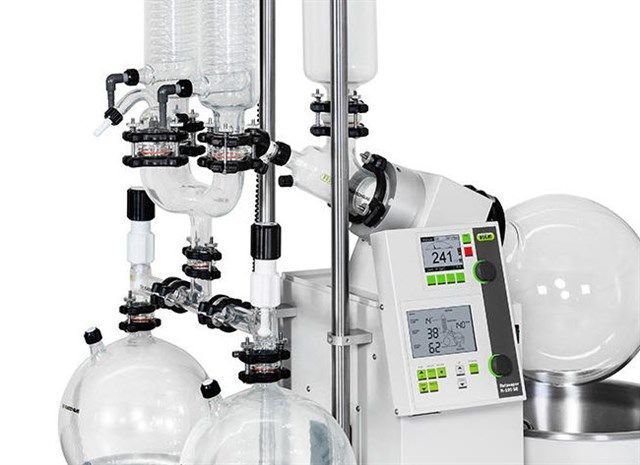

BUCHI Corporation - R-220 SE
[+] View Model Specifications| Depth | 510 mm |
| Height | 1430 mm |
| Evaporator Orientation | Vertical |
| Width | 1200 mm |
| Power Requirements | 200V, 220 - 240 V (1P,N,G) |
| Weight | 65 kg |
| Additional Model Specifications | The Rotavapor R-220 SE (Second Edition) is a further development of the very successful industry approved Rotavapor R-220. Many proven elements have been carried over from the original R-220. However, a few new features have been introduced in relation to safety and ease of use. The R-220 SE is the only 20 liter rotary evaporator that offers: |
