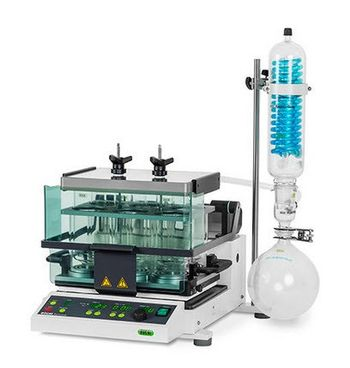

BUCHI Corporation - Syncore® Polyvap
Manufactured by BUCHI Corporation
Maximize multiple sample workup efficiency
The Syncore® Polyvap allows fast evaporation of up to 96 samples in parallel. Save time and increase your efficiency by evaporating multiple samples with volumes from 0.5 to 500 mL.
Active Questions & AnswersAsk a Question
There are no current Discussions
Other Service ProvidersView All (9)
Documents & ManualsView All Documents
Features of Syncore® Polyvap
Efficient
- Highest sample throughput of up to 96 samples due to the speedy “Vacuum Vortex parallel evaporation technology”
- Collect your flash Chromatography fractions directly
- Integrable solid phase extraction (SPE) saves time and reduces contamination risk
- Lowest emissions by close to 100 % solvent recovery
- Prevent boiling retardation during evaporation due to the variable orbital shaking
- Save money and reduce emissions by no need of nitrogen
- No cross-contamination due to the vacuum cover
- Interchangeable racks to evaporate samples from 0.5 to 500 mL
- Optimal adjusted vacuum gradients guarantees maximum flexibility and working speed
- Evaporate even high-boiling solvents thanks to the heated cover and the high boiling kit
General Specifications
| Depth | 354 mm |
| Height | 480 mm |
| Width | 487 mm |
| Power Requirements | 230V, 120V, 100V |
| Peak Power | 1500 W |
| Weight | 30 kg |
| Evaporator Type | Rotary |
Additional Specifications
Power rating: 1500 W
With optional cooling plate: -20°C to +150°C
Safety adjustments: Speed, temperature (max. and min.) Auto start
Program: 9 time/temperature steps. Up to 9h:59 min each.
