Kinematica - POLYMIX PX-SR 90 D
Manufactured by Kinematica

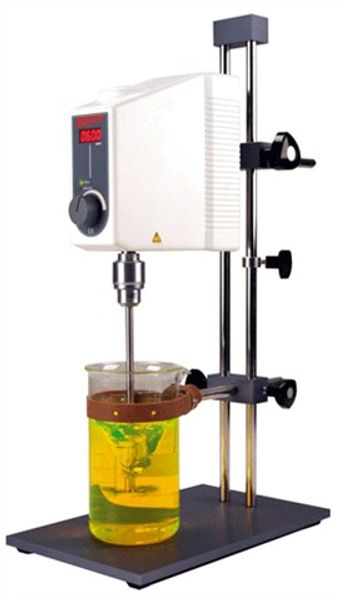

PX-SR 90 D Bench Top Stirrer
The stirrer POLYMIX® PX-SR 90 D is designed for laboratory work in the range of medium viscosities up to 25 liters. The system has been developed and certified regarding the latest safety standards and regulations. High operational safety is ensured (e.g. by the integrated blocking protection, the builtin overheating protection and the safety stand for avoiding any tilting).
Active Questions & AnswersAsk a Question
There are no current Discussions
Overhead Stirrers Service ProvidersView All (4)
Documents & ManualsView All Documents
Features of POLYMIX PX-SR 90 D
- Digital speed regulation up to 1500 rpm ensures constant speed throughout
- Stepless speed regulation permits setting of incremental speeds.
- LED display for speed indication
- Digital readout assures that the same processes are done at the same speed
- High torque provides the capability of being able to do quite viscous liquids with a relatively small, space saving motor.
- Changeable direction of rotation.
- Overload indication.
- Built-in overheating protection ensures high operational safety
- Motor is designed for low noise levels permitting use in a crowded lab
- CE mark.
General Specifications
| Depth | 210 mm |
| Extension Arm Diameter | 11 mm |
| Height | 247 mm |
| Maximum Stirring Quantity | 25 L |
| Maximum Stirring Speed | 2000 rpm |
| Width | 95 mm |
| Maximum Torque | 35 N.cm |
| Power Requirements | 230V / 50 Hz or 100-120V / 60 Hz |
| Maximum Viscosity | 15000 mPa.s |
| Noise Level | 66 dB |
| Weight | 3 kg |
| Motor | 88 W(Input)/60W(Output), DC motor |
| Stirrer Control | Electronic |
Additional Specifications
Speed display: LED
Speed regulation: Integrated digital speed regulation, constant speed, Soft-Start
Chuck range: 0.5-10 mm / hollow shaft 11 mm
Protection class: IP 20
Certified standards: EMC acc. IEC/EN 61000-6-2 / 3; Safety acc. IEC/EN 61010-2-51
