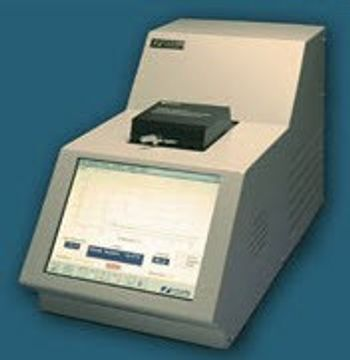

Phase Technology - 70X

Manufactured by  Phase Technology
Follow this Equipment

Phase Technology 70X series analyzers meet ASTM International standards for measuring pour, cloud and freeze point: ASTM D5949, ASTM D5773.

In the highly competitive fuel and lubricant marketplace, refineries and petroleum companies need to increase throughput to capture a higher margin. Phase Technology’s 70X analyzer helps them minimize giveaway and ensure that their product is on spec.

The 70X significantly increases lab productivity and improves profitability by providing quick, precise results. Phase Technology users can be confident that their results accurately report to ASTM test values.
Active Questions & AnswersAsk a Question

Recent Questions & Answers

avatar placemark

Asked byvnewco466

avatar placemark

Asked byAbabin

Need Equipment Support?

Request Support
Features of 70X
  • Best measured precision of any automatic or manual method
  • Fastest speed of any automatic or manual method: test results in just 8-20 minutes
  • Capable of any user programmable resolution to 0.1°C
  • Wide range of temperatures from -80°C to +50°C
  • Unsurpassed detection of contamination in jet fuels
  • Rapid cooling and quick heating of samples
  • Compact design – easy to move around your lab or fit into areas with little space
  • Full-color, touch-sensitive, 10.4” high resolution LCD touch screen
  • Test progress and results visible on real time digital and graphical displays
  • Quick set up time, intuitive and easy to understand on-screen prompts
  • Test uses small sample volume
  • Completely self-contained system: no need for external coolant
  • Quiet, energy efficient and environmentally friendly (no toxic coolant vapors)
  • Customizable reporting – test history, plot data and self-diagnostics can be displayed on-screen, printed, or transferred to computer for statistical analysis, presentations, email sharing, archival storage

And these new value-added features developed to increase workflow optimization:

  • "Favorites" Test Run Presets: Frequently-used test settings can now be stored in the analyzer for quick access. Favorites can be created, organized, sorted or deleted as you desire. With the single push of a button, lab operators can efficiently perform tests in significantly less time.
  • Ethernet-Ready: Ethernet port available for connecting to LIMS or internal computer network
  • USB Drive Connectivity: Provides quick export of analyzer data to a portable USB flash drive. USB capability also makes remote diagnostics and troubleshooting easier. Easily connect other devices like printers, barcode scanners and keyboard
  • Buzzer Alarm Alert: At the user’s discretion, the analyzer can be set to beep to indicate warnings, alarms and prompts o when a test run is completed o prompt the user to load a black oil or crude oil sample o when the cloud point test finishes and it is switching to the pour point test o system overheat or other temperature anomalies o change dryer desiccant prompt
  • Large Format Results Screen: Optional pop-up window displays test results in larger, easier-to-read font
General Specifications
Depth 21 in
Height12 in
Width 10 in
Power Requirements 90-280 VAC, 47-63 Hz, 350 W
Weight46 lbs
RefrigerationIntegrated Peltier device cooling system
Sample Size0.15 mL
Shipping Weight55 lbs
Typical Measuring Time Per Sample30 min
Test Duration Range8 to 30 min
Additional Specifications

Test Duration Range:
Cloud point: 5-10 min
Freeze point: 8-10 min
Bias: 0 (relative to ASTM manual methods)
Contamination Detection: 99%
Sample Temperature Range:
Pour Point -57ºC to 51ºC
Cloud Point: -60ºC to 49ºC
Freeze Point: -80ºC to 20ºC
Test Intervals: 0.1ºC Resolution
Required Operator Time: 0.5 minutes
Detection Method: Diffusive Light Scattering (DLS) technology (over 25 patents)
Display: Full-color, touch-sensitive, 10.4” high resolution LCD touch screen
Outputs: (3) USB ports for flash drive, label printer, barcode scanner keyboard, mouse;
(3) RS-232 serial ports for optional accessories, LTB diagnostic software, external computer;
(1) 10/100Base-T Ethernet (RJ45) port for networking: LIMS, local area network (LAN)
Temperature Measurement: ºC or ºF (User selectable)
Alerts: Buzzer for alarms warnings and prompts (User selectable)
Internal Memory: Storage up to 5000 test runs (minimum)
Shipping Dimensions: (W X D X H) 29 x 18 x 16 inches
External Cooler Bath: None
