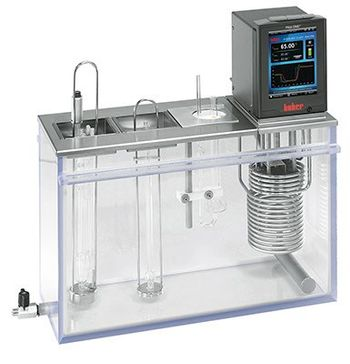

Huber - CC-130A Visco 5 with Pilot ONE
Manufactured by Huber
Visco thermostats are suitable for measurement tasks using capillary viscometers or for use of densitometers.
Visco thermostats are suitable for measurement tasks using capillary viscometers or for use of densitometers. The devices offer the highest temperature stability for optimal temperature distribution in the thermostat bath. For operation below or near the ambient temperature there is a cooling coil integrated for a cooling water connection. Various function packages for the Pilot ONE can be activated using E-grade as required.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of CC-130A Visco 5 with Pilot ONE
- Pilot ONE controller with Plug & Play technology * Precise temperature control * 5.7“ touchscreen and comfortable menu navigation * Over-temperature and low level protection * Safety class III/FL (DIN 12876) * Powerful pressure/suction pump * Programmer with calendar and clock functions * 5-point calibration * RS232 interface and Pt100 connection
General Specifications
There are no General Specifications available.
Additional Specifications
Temperature range (15) 28...100 °C
Temperature stability ±0.01 °C
Temperature control TAC, self-optimizing (True Adaptive Control)
Controller Pilot ONE (E-grade "Basic")
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 500 x 240 x 490 mm | 19.69 x 9.45 x 19.29 inches
Weight 11 kg | 24.26 pounds
