This product is Discontinued

Miele - G7835

Manufactured by  Miele
Follow this Equipment

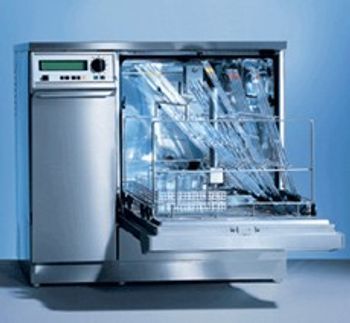

The G 7835 Lab Glassware Washer represents the ultimate in an under counter glassware washer.

Designed for particularly difficult cleaning applications, this unit features the fully, freely programmable Profitronic Control System. Profitronic is an easy to use interface designed to allow easy programming by the end user, and storage of up to 45 custom wash protocols.

In addition, the unit features HEPA filtered forced-air drying designed to dry glassware completely inside and out, and automatic liquid detergent and neutralizer dispensing with on-board storage.
Active Questions & AnswersAsk a Question

There are no current Discussions

Standard Capacity Washers Service ProvidersView All (7)

Request Support
Features of G7835

Detergent Dispensing

The G 7835 is equipped with on-board automatic liquid detergent dispensing and storage. Automatic detergent dispensing provides high levels of accuracy and eliminates potential user error in the dosing process. Plus, the included 5L reservoir means less refilling. Typically, it is refilled after approximately every 80 washes.

High Circulation

The Miele G 7835's circulation pump is rated at 106 gallons per minute for superior cleaning power. Common household dishwashers circulate 25-30 gpm and many typical laboratory washers circulate only about 60 gpm.

Miele glassware washers use high water turnover (circulation) with low spray pressure to provide gentle yet effective cleaning. Most washers utilize high pressure with lower circulation, which can break delicate glassware. For this reason, "hold down" screens are not necessary with Miele washers.

Water Heating

Hotter wash water generally provides better cleaning results. The Miele G 7835 has fully adjustable wash and DI rinse temperatures up to 95ºC. Wash times are also fully adjustable.

Complete program flexibility allows the G 7835 to handle a robust range of cleaning tasks, from mild contaminants and plastics preferring low temperatures, to the toughest cleaning challenges requiring high wash temperatures.

Neutralizer Dispensing

The G 7835 is equipped with on-board automatic liquid acid neutralizer dispensing and storage. Acid neutralizer is critical in restoring pH balance to glassware.

Automatic dispensing provides high levels of accuracy and eliminates potential user error in the dosing process. Plus, the included reservoir means less refilling. Typically, the 5L neutralizer reservoir is refilled every 500 washes.

Water Softener

Proper water hardness levels are key in ensuring detergent performance and prevention of scaling. The Miele G 7835 is equipped with an on-board water softener adjustable to your particular hardness level.

Steam Condenser

The integrated steam condenser eliminates the need for machine venting. Using cold water, the steam condenser condenses vapors, and flushes them down the drain. This ensures minimal heat and vapor release into laboratory space.

Drying System

The G 7835 is equipped with a HEPA filtered forced air drying system which provides a faster, more complete drying result then traditional convection drying. Drying times and temperatures (ambient to 115ºC) are fully adjustable to meet the demands of whatever is being dried. The unit features pre-motor coarse, and post-motor HEPA filters. These filters ensure that the air circulating during drying is clean and particulate free. When combined with injection baskets, forced air-drying blows air both around the chamber and into each individual piece of glassware for complete drying, even in difficult narrow-neck items.

New Features:

  • Flow Meters
  • Dual Temperature Sensors
  • Electronic Door Lock
  • Audio-Visual Alarm System
  • Validation Port
  • RS-232 Port
  • Program Continuation
  • Non-Return Valve
General Specifications
Depth 27.5 in
Flow Rate10.5 L/min
Height33.5 in
Internal Depth 20.5 in
Internal Height 18.5 in
Width 35.5 in
Feed Water Pressure10-145 PSI
Internal Width 20.5 in
Maximum Temperature95 °C
Power Requirements 208/220V, 60Hz, 20 Amps, 6.0kW total load. 208/220V, 60Hz, 30 Amps, 6.0kW total load.
Noise Level54 dB
Recirculation Pump (flow rate)Rated at 106 gallons per minute (400 l per minute) Pump includes speed sensor to protect against overheating
ConstructionExterior: Brush finish type 304 Stainless Steel Interior: Type 304 SS sides, back, and top Type 316 SS chamber floor and door
Washer CapacityStandard Capacity
Additional Specifications

Programs:
Standard: 11 standard wash routines, 8 utility programs
Custom: Up to 45 custom wash routines can be created and stored. Profitronic control system offers full programmability.
Cleaning Mechanisms:
Rotary: Dual spray arms located at the top, and bottom of chamber
Direct Injection: Upper, lower, or dual injection baskets available
Water Softener: Built-in softener with adjustable water hardness control
Steam Condenser: Included. No external venting is required.
