Labconco - FlaskScrubber Glassware Washer
FlaskScrubber Glassware Washers are designed to wash and dry narrow-neck and general purpose labware.
Active Questions & AnswersAsk a Question
Recent Questions & Answers

Asked byDucky1
Standard Capacity Washers Service ProvidersView All (7)
Documents & ManualsView All Documents
Features of FlaskScrubber Glassware Washer
18 glassware holders, 36 clips and 10 additional interchangeable small spindles
LCD information center for customizing cycles and monitoring operation, including internal water temperature (° C or ° F)
Water recirculation rates of 96 gal/min (363 liters/min) when operated on 115 Volt, 60 Hz and 230 Volt, 50 Hz and 112 gal/min (424 liters/min) on 230 Volt, 60 Hz for thorough cleaning
Dual pumps, one for washing and one for draining, to reduce potential for cross contamination
Built-in purified water pump to bring non-pressurized or pressurized purified water into the tank for up to six pure water rinses
Built-in steam generator that produces hot vapor to penetrate and remove dried residue for cleaner glassware
Manual-fill detergent dispenser for powder or liquid detergent
Manual-fill rinse aid solution dispenser
Alarms with display for HOT GLASS, PLEASE WAIT, WATER LOW, WATER HIGH and OVERFLOW
Two user-set cycle programs
User-set delayed start (up to 8 hours)
Type 304, brushed stainless steel door, tank, upper and lower wash arms. Free standing models also have stainless steel exterior sides and top.
One-piece, stainless steel, fine mesh particle drain filter to trap debris in tank to protect the pumps
3/8" Female NPT inlet fitting for hot tap water connection
Factory-installed drain hose and band clamp
Two year warranty on parts and labor
Accommodate optional Upper Spindle Rack with additional wash arm and side release latches (Upper Spindle Rack sold separately).
Accommodate optional Upper and Lower Standard Racks.
General Specifications
There are no General Specifications available.
Series Modals

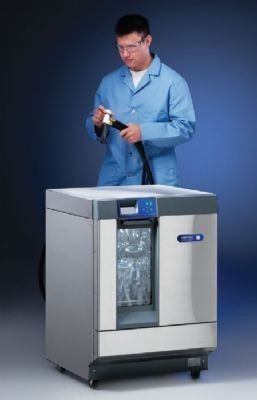

Labconco - Freestanding 115 V Model 4420420
[+] View Model SpecificationsDepth | 27.5 in |
Flow Rate | 363 L/min |
Height | 34.2 in |
Width | 24.2 in |
Maximum Temperature | 82 °C |
Power Requirements | 115 V, 60 Hz, 16 A, Domestic |
Weight | 239 lbs |
Recirculation Pump (flow rate) | 96 gal/min (363 liters/min) |
Wash/Rinse Cycles | 7 |
Construction | Type 304 brushed stainless steel exterior and interior |
Drying System | Forced Air |
Washer Capacity | Standard Capacity |
Washer Orientation | Freestanding |
Additional Model Specifications |
Labconco - Freestanding 230 V Model 4420421
[+] View Model SpecificationsDepth | 27.5 in |
Flow Rate | 424 L/min |
Height | 34.2 in |
Width | 24.2 in |
Maximum Temperature | 93 °C |
Power Requirements | 230 V, 50/60 Hz, 12 A, Domestic/International |
Recirculation Pump (flow rate) | 96 gal/min (363 liters/min) |
Wash/Rinse Cycles | 10 |
Construction | 304 brushed stainless steel exterior and interior |
Drying System | Forced Air |
Washer Capacity | Standard Capacity |
Washer Orientation | Freestanding |
Additional Model Specifications |

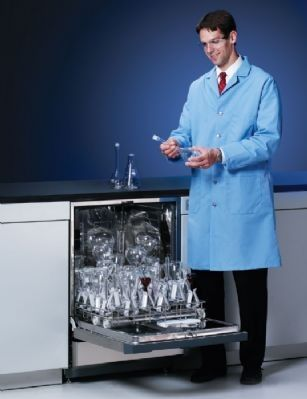

Labconco - Undercounter 115 V Model 4578120
[+] View Model SpecificationsDepth | 27.4 in |
Flow Rate | 363 L/min |
Height | 34.1 in |
Width | 24.1 in |
Maximum Temperature | 82 °C |
Power Requirements | 115 V, 60 Hz, 16 A, Domestic |
Weight | 206 lbs |
Recirculation Pump (flow rate) | 96 gal/min (363 liters/min) |
Wash/Rinse Cycles | 7 |
Construction | 304 brushed stainless steel door and interior |
Drying System | Forced Air |
Washer Capacity | Standard Capacity |
Washer Orientation | Undercounter |
Additional Model Specifications |
Labconco - Undercounter 230 V Model 4578121
[+] View Model SpecificationsDepth | 27.4 in |
Flow Rate | 424 L/min |
Height | 34.1 in |
Width | 24.1 in |
Maximum Temperature | 93 °C |
Power Requirements | 230 V, 50/60 Hz, 12 A, Domestic/International |
Recirculation Pump (flow rate) | 96 gal/min (363 liters/min) |
Wash/Rinse Cycles | 10 |
Construction | 304 brushed stainless steel door and interior |
Drying System | Forced Air |
Washer Capacity | Standard Capacity |
Washer Orientation | Undercounter |
Additional Model Specifications |
Videos
Programming a Labconco Glassware Washer
