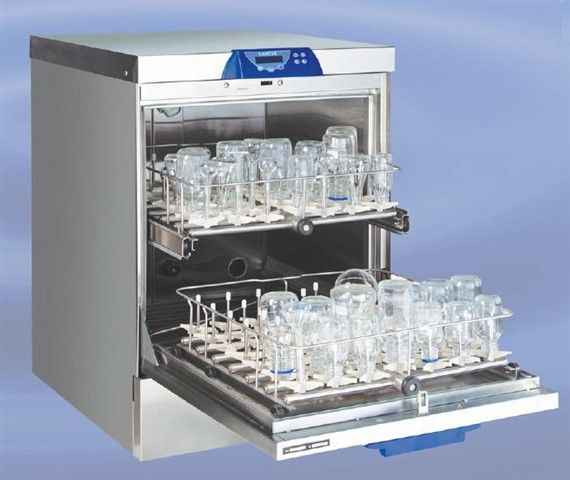

Lancer - 815 LX Undercounter Washer Dryer
Undercounter Lab Glassware Washer Dryer
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked bySeparations Specialist
Standard Capacity Washers Service ProvidersView All (7)
Documents & ManualsView All Documents
Features of 815 LX Undercounter Washer Dryer
Key features of 815 LX:
Hot, forced air chamber drying
Efficient direct injection cleaning
Flexibility with two independent wash levels and interchangeable racks
Economical and accurate dosing by two peristaltic pumps
High grade stainless steel clad on all sides for stand alone applications
All Lancer washers feature these key benefits:
Fast cycles and outstanding results from powerful wash action and design
Easy to use microprocessor controls with self-diagnostic software and alarms
Flexibility of multi-level injection washing and interchangeable racks
All sizes and types of glassware cleaned with chamber configuration choices
Ergonomic and safe loading of racks on load bearing telescopic runners
Accurate and repeated intake of cleaning chemicals by automatic peristaltic dosing pumps
Robust high grade 304 L and 316L stainless steel construction (varies by model)
Eco-friendly low energy, chemicals and water usage
General Specifications
| Depth | 26.75 in |
| Flow Rate | 25 L/min |
| Height | 33.25 in |
| Internal Depth | 20 in |
| Internal Height | 20 in |
| Width | 23.5 in |
| Feed Water Pressure | 29-87 psig |
| Internal Width | 21 in |
| Power Requirements | 208 V-3 Ph, 208 V-1 Ph |
| Heat Loss | 2,380 Btu/hr (600 Kcal/hr) |
| Noise Level | 63 dB |
| Weight | 188 lbs |
| Recirculation Pump (flow rate) | 92 gal/min (350 L/min) |
| Water Consumption | 3.1 gal (12 L ) per fill |
| Drying System | Forced Air |
| Washer Capacity | Standard Capacity |
| Washer Orientation | Undercounter |
Additional Specifications
Steam condenser: standard
Wash Levels: 1 to 2
Water Supply (Cold, DI) Connection: 3/4 inch hose thread
Loading Height: 10” (250 mm)
Injection Cleaning: 1 to 2 levels
