BERTHOLD TECHNOLOGIES - LB 124 SCINT-D Contamination Monitor
Manufactured by BERTHOLD TECHNOLOGIES
No Documents

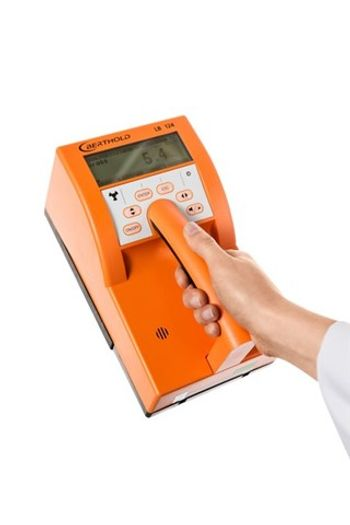

The Contamination Monitor with Dose Rate Detector LB 124 SCINT-D is used to measure radioactive alpha and beta-gamma contaminations on surfaces.
The Contamination Monitor with Dose Rate Detector LB 124 SCINT-D is used to measure radioactive alpha and beta-gamma contaminations on surfaces such as floors, walls, desks, objects, clothing or skin as well as gamma dose rate in ambient dose rate equivalent H*(10).
Active Questions & AnswersAsk a Question
There are no current Discussions
Elemental Analyzers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of LB 124 SCINT-D Contamination Monitor
Highlights
- Lightweight, easy to handle and rugged instrument
- Wide temperature range
Contamination Detector
- Simultaneous and separate measurement of alpha and beta-gamma contamination with a ZnS(Ag)-scintillation detector
- High sensitivity and uniform response
- No counting gas required
Dose Rate Detector
- Detector positioned parallel to the front side of the instrument
- Energy response to H*(10) Ambient Dose Equivalent
- Halogen quenched Geiger-Müller tube
- Dynamic Range: 0.1 ΜSv/h to 20 mSv/h
- Energy Range: 50 keV to 1.3 MeV
- Alarm threshold for dose rate measurement
- Unit selection: ΜSv/h
- Dose accumulation is possible
General Specifications
There are no General Specifications available.
Additional Specifications
Display Monochrome LCD 192 x 64 pixel
Electro-luminescence illumination
Radiation detector ZnS(Ag) scintillator
Detection of light Photomultiplier (PMT)
Measurement modes
Α- and Β-Γ-measurement, simultaneous and separate,
additional gamma dose rate H*(10)
ratemeter, scaler-timer-mode, clearance measurement, half-life measurement, survey mode
Entrance windows dimensions 118 mm × 145 mm
Sensitive area 170 cm²
Entrance windows material 2 x 3 Μm Plastic metallized (0.4 mg/cm²)
Protective Grid 80 % Transmission
