BERTHOLD TECHNOLOGIES - LB 134 Universal Monitor II
Manufactured by BERTHOLD TECHNOLOGIES
No Documents

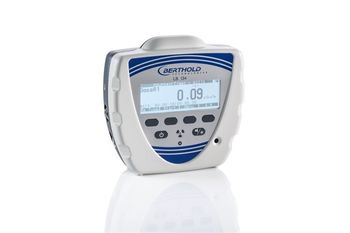

The LB 134 Universal Monitor II can be used to measure radioactive alpha and beta-gamma contaminations on surfaces.
The LB 134 Universal Monitor II can be used to measure radioactive alpha and beta-gamma contaminations on surface such as floors, walls, desks, objects, clothing or skin as well as gamma dose rate in ambient dose equivalent H*(10). Therefore a large number of detectors can be attached to the basic unit.
Data communication via RS 485 and USB with F²C protocol including PC programm for remote parameter up- and download, data storage and graphical evaluation. Saving data storage, parameter up- and download and firmware upgrade are possible via USB memory stick.
Data communication via RS 485 and USB with F²C protocol including PC programm for remote parameter up- and download, data storage and graphical evaluation. Saving data storage, parameter up- and download and firmware upgrade are possible via USB memory stick.
Active Questions & AnswersAsk a Question
There are no current Discussions
Elemental Analyzers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of LB 134 Universal Monitor II
Highlights of the LB 134 UMo II
- Lightweight, easy to handle, rugged
- Connection to all portable detectors
- Network capability
- Wide temperature range
- PC Software with remote application
- Practical bag with strap
Dose Rate Detector [built-in]
Detector positioned parallel to the front
- Energy response to H*(10) Ambient Dose Equivalent
- Halogen quenched Geiger-Müller tube
- Dynamic range: 100 nSv/h to 20 mSv/h
- Energy range: 50 keV to 1.3 MeV
- Alarm threshold for dose rate measurement
- Accumulated dose and dose rate
General Specifications
There are no General Specifications available.
Additional Specifications
Display
Monochrome LCD 192 x 64 pixel
Electro-luminescence illumination
Gamma radiation detector Geiger-Müller tube (built-in)
Measurement modes
ratemeter, scaler-timer-, search mode
External dimensions 160 x 160 x 55 (L x W x D in mm)
Weight 1400 g (with batteries)
Data memory 2400 measured values with date & time
Communication USB, Host for USB stick, RS 485
Max. operating time
> 15 h alkaline batteries 2.6 Ah (4 x AA)
> 10 h NiMH rechargeable batteries 1.9 Ah
(internal detector activated)
