BERTHOLD TECHNOLOGIES - LB 2045 Gamma Spectrometer
Manufactured by BERTHOLD TECHNOLOGIES
No Documents

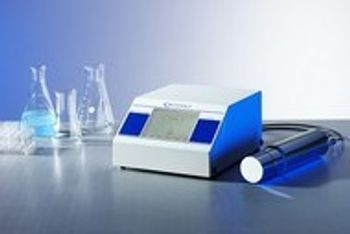

The LB 2045 is a modern gamma spectroscopy system for activity measurements in laboratories.
The LB 2045 is a modern gamma spectroscopy system for activity measurements in laboratories.
It is easy to operate and provides quick and reliable measurement results which are presented clearly arranged on a large graphical display with touch panel.
The instrument is ideally suited for nuclide-specific activity measurements in the radionuclide laboratory.
Active Questions & AnswersAsk a Question
There are no current Discussions
Elemental Analyzers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of LB 2045 Gamma Spectrometer
- Connection for scintillator probes (NaI, CsI, BGO)
- 3 different energy ranges
- Spectrum presentation (1024 channels)
- Graphical display (320 x 240 pixel) with touch panel
- One or two energy windows
- Nuclide library
- Storage of spectra or ROI data
- Half-life correction
- Weight entry and spillover correction
- Filling volume correction
- Real-time clock
- RS232 interface for printer/PC
General Specifications
There are no General Specifications available.
Additional Specifications
ADC: 1024 channels, 7 µs max. conversion time
Energy ranges: 0 - 256 keV, 0 - 1024 keV, 0 - 2048 keV
Energy calibration: non-linear empirical function (polynomial fit)
Region of interest: max. 2 ROIs
Nuclide library: max. 50 nuclides
