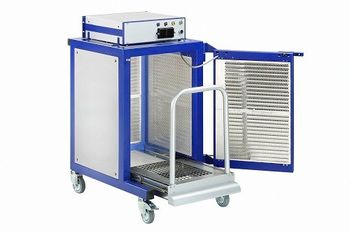

BERTHOLD TECHNOLOGIES - LB 2050 Clearance Monitor

Manufactured by  BERTHOLD TECHNOLOGIES
Follow this Equipment

The Clearance Monitor LB 2050 has been specially designed for clearance measurements which are required for the disposal of radioactive waste.

The Clearance Monitor LB 2050 has been specially designed for clearance measurements which are required for the disposal of radioactive waste with negligible radioactivity in accordance with the German Radiation Protection Ordinance of 2001.

For clearance as non-radioactive substances, nuclide specific limit values (total activity and specific activity) must not be exceeded. This requires measurement of the sample activity (Bq/g) and the surface contamination (Bq/cm²). The Clearance Monitor LB 2050 is designed for the measurement of mass-specific activity and surface contamination.

Cleared objects can be treated and disposed of as nonradioactive objects. However, the appropriate regulations have to be observed if these substances are toxic. Objects whose activity exceeds the permissible limit values are treated as radioactive substances and have to be handled accordingly.

The Clearance Monitor LB 2050 indicates the storage time for the respective nuclide until the radioactivity of waste has decayed so much that the values fall below the legal clearance levels. All clearance measurements are automatically documented in accordance with statutory and regulatory requirements.

Active Questions & AnswersAsk a Question

There are no current Discussions

Elemental Analyzers Service ProvidersView All (6)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of LB 2050 Clearance Monitor
  • 6 large area Xenon filled proportional counter tubes
  • Detectors arranged in 4-Pi geometry
  • Approx. 150-litre volume
  • 5 mm all-around lead shielding (optional 7 mm)
  • Easy and ergonomic loading of waste containers
  • Integrated load cell
  • 2 compensation detectors in case of fluctuating background (optional)
  • Operation by means of a standard PC with a special software
  • Easy handling even for untrained users (semi-automatic or automatic mode)
  • Administrative tools for a radioactive waste depot
