Ortho Clinical Diagnostics - Sample Divider PT 100

Manufactured by  Ortho Clinical Diagnostics
Follow this Equipment

A faultless and comparable analysis is closely linked to accurate sample handling.

A faultless and comparable analysis is closely linked to accurate sample handling. Only a sample representative of the initial material can provide meaningful analysis results. Rotating dividers ensure the representativeness of a sample and thus the reproducibility of the analysis.

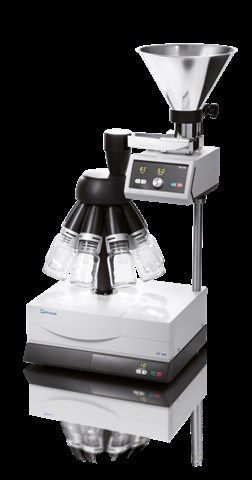

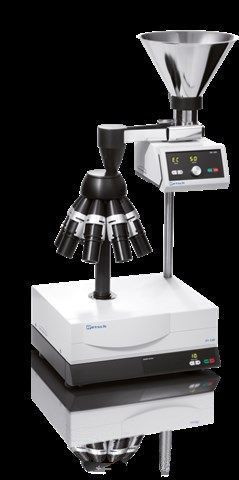

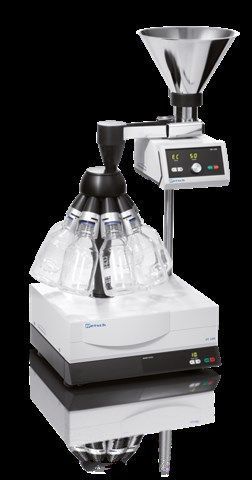

The sample divider PT 100 divides the sample so exactly that the composition of each fraction of the sample corresponds exactly to that of the original bulk sample. This applies both for fine-powdered and coarse materials. The material feed and dividing processes take place automatically, without interruption and without loss of material. The Sample Divider PT 100 has a modular design and can be put together to suit individual requirements. It offers an extremely flexible range of possible applications. A feeder, various dividing heads, sample receptacle vessels and further useful accessories are available in addition to the drive unit.

Application Examples

Cement clinker, chemicals, coffee, construction materials, fertilizers, fillers, flours, grains, metals powders, minerals, nuts, sand, seeds, soils, washing powder.

Active Questions & AnswersAsk a Question

There are no current Discussions

Sample Preparation Service ProvidersView All (4)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of Sample Divider PT 100
  • high division accuracy to suit modern analytical devices
  • modular design
  • automatic material feed via synchronized feeder
  • quick-release clamping system for simple and rapid handling of sample bottles
  • digital time setting
  • speed is monitored and kept constant
  • wide range of accessories including various dividing heads, collection and feeding systems
  • compact, easy to clean
General Specifications

There are no General Specifications available.

Additional Specifications

Applications: sample division, sample reduction

Field of application: agriculture, biology, chemistry / plastics, construction materials, engineering / electronics, environment / recycling, food, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals

Feed material: bulk materials

Material feed size: 10 mm

Batch size / feed quantity: 5000 ml

Rotary speed: 110 min-1

Number of divisions: 6 / 8 / 10

Time setting: digital, 1, 3, 5, 10 - 60 min / continuous operation

Container volume: 30 ml / 100 ml / 250 ml / 500 ml

Electrical supply data: 100-240 V, 50/60Hz

Power connection: 1-phase

W x H x D: 580 x 910 x 420 mm (incl. DR 100)

Net weight: ~ 33.5 kg (incl. DR 100)

Standards: CE
