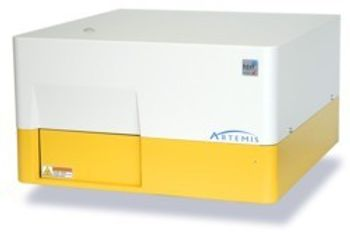

BERTHOLD TECHNOLOGIES - Artemis K-101

Manufactured by  BERTHOLD TECHNOLOGIES
Follow this Equipment

High Performance HTRF® Microplate Reader

The Artemis K-101 has been designed for optimum performance with CISbio´s HTRF® reagents. The HTRF® approved instrument is extremely easy to use and guarantees superior performance even with demanding applications.
Active Questions & AnswersAsk a Question

There are no current Discussions

Microplate Readers Service ProvidersView All (13)

Request Support
Features of Artemis K-101
Dedicated Optics      The internal reflection epi-fluorescence optics paired with selected excitation and emission filters and a sensitive detector operated in single photon counting mode ensures best performance with low background and high sensitivity comparable to laser-based systems.      HTRF® compatible      The instrument has been validated for all of CISbio´s HTRF® reagents. Any HTRF® assay based on either the Europium or the new Terbium cryptates can be measured with superior performance. The HTRF® assay platform from CISbio offers the researchers a highly sensitive, robust technology for the detection of biological interactions such as G-Protein Coupled Receptor (GPCR), kinase and imflammation biomarkers among others.      Easy-to-use software      The Artemis is completely controlled by the MicroPlateReader software package. The user is able to adjust the numbers of flashes and thus the respective reading times per well and plate. The HTRF® ratio calculation derived from the donor and acceptor signals, a patented method to correct for quenching and sample interferences, is automatically performed. Even standard curves can be calculated with the software.
General Specifications
Depth 450 mm
DetectorSingle photon counting PMT, 620 and 665 nm filters, sequential measurement
Height250 mm
Width 440 mm
Power Requirements 100/110/240 VAC; 50/60 Hz max. 200 VA
Sample Formats96 and 384 well plates
LightingHigh energy Xenon flash lamp
Weight35.2 lbs
Scanning Speed150 s (96 well, 20 flashes) Software incl. HTRF® ratio calculation
Additional Specifications

Measurement technology: HTRF®
Dynamic range: > 2000 % dF high std
Sensitivity: < 10 pg/mL TNFa
Interface: USB 2.0
Certifications: CE; HTRF® compatible
