BINDER - FED Series
Manufactured by BINDER
Heating chamber with forced convection
The FED series is a true all-rounder. It has a virtually unlimited capacity and is at the same time particularly adaptable to the specific requirements of a large variety of testing applications. The enhanced time functions and the digitally controlled air turbine can be used to adjust ideal temperature parameters and recirculation air conditions.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Lab Ovens Service ProvidersView All (15)
Documents & ManualsView All Documents
Features of FED Series
- Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results
- Temperature range 5 °C (9 ºF) above ambient temperature up to 300 °C (572 °F)
- MS controller with serveral timer functions - Controller timer functions: delayed ON, delayed OFF, temperature dependent delayed OFF
- Digital temperature setting with an accuracy of one degree
- Adjustable fan speed
- Front ventilation flap slide and rear exhaust duct Ø 50 mm (1.97 inch)
- Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
- RS 422 interface for use with optional GMP/GLP and FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software, or switch over to printer output with RS 232 / RS 422 interface converter
- Units up to 115 liters are stackable
- 2 chrome-plated racks included
- BINDER test certificate
- Access ports: With silicon plugs for inserting external measuring devices into the chamber. Access ports with 10, 30, 50 and 100 mm (0.4, 1.2, 2, 3.9 inch) diameter.
- Door with window and interior lighting: For optimum process control in the interior, available for all equipment sizes.
- Lockable door: Prevents unauthorized access and interference with processes in the chamber.
- Calibration certificates: Measurement in the center at specified values. Additional measuring points or test values according to your specification.
- Access port with silicone plugs, 10 mm (0.39 inch), 30 mm (1.18 inch), 50 mm (1.97 inch), 100 mm (3.94 inch)
- HEPA fresh-air filter, class H 14 (according to EN 1822, min. 99.995% for 0.1-0.3 µm particles)
- Securing elements for additional fastening of racks (1 set of 4 pieces)
- Anti - slip rubber pads for safe stacking (1 set of 4 pieces)
- Independent adjustable temperature safety device, Class 3.1 (DIN 12880) with visual alarm
- Analog temperature output, 4 - 20 mA, with 6 - pin DIN socket (output not adjustable)
- Over temperature alarm, audible, can be switched off. Temperature limit can be set at the independent, adjustable temperature safety device
- Temperature measurement acc. to DIN 12880 at 150 °C (302 °F) or at specified temperature with measuring protocol and certificate
- Factory calibration certificate. Measurement in center of chamber at 150 °C (302 °F) or at specified testing temperature
- Extension to factory calibration certificate. Each additional measurement at an additional measuring point or temperature
- Data Logger Kit T 350: For the continuous temperature recording of 0 °C (32 °F) to 350 °C (662 °F). Kit includes 1 data logger, PT 100 sensor with 2 m Teflon extension cable and 1 fixture for the connection at the BINDER unit
- Data Logger Software: Configuration und evaluation software for all BINDER Data Logger Kits, incl. data cable
- Rack, chrome - plated
- Rack, stainless steel
- Reinforced rack, stainless steel, with 1 set of securing elements (4 pieces), max. load 70 kg (154 lbs.)
- Shelf, perforated, stainless steel
- Door Lock
- Door gasket, FKM (Viton)
- Reinforced inner chamber, including 2 reinforced racks, maximum total load 250 kg (552 lbs.), max. load per rack 70 kg (154 lbs.)
- 2 doors with 1 window each 470 x 290 mm (18.50 x 11.42 inch) and interior lighting (30 W)
- Increased air change rate through high performance fan
General Specifications
There are no General Specifications available.
Additional Specifications
FED 53
Temperature data
Temperature variation 1)
at 70 °C (± °C) 0.8
at 150 °C (± °C) 2
at 300 °C (± °C) 3.7
Temperature fluctuation (± °C) 0.3
Heating up time 2)
to 70 °C (Min.) 6
to 150 °C (Min.) 24
to 250 °C (Min.) 45
Recov. time after door was opened for 30 sec. 2)
at 70 °C (Min.) 2
at 150 °C (Min.) 5
at 300 °C (Min.) 10
Exterior dimensions
Depth plus door handle and exhaust duct (mm/inch) 90 / 3.5
Wall clearance rear (mm/inch) 100 / 3.9
Wall clearance side (mm/inch) 160 / 6.3
Exhaust duct outer- Ø (mm/inch) 52 / 2.1
Steam space volume (l/cu.ft.) 77 / 2.7
Number of doors 1
Interior dimensions
Racks, chrome-plated (number standard/max.) 2 / 5
Load per rack (kg/lbs.) 15 / 33
Permitted total load (kg/lbs.) 40 / 88
Air change data
Air change
at 150 °C (x/h) 43
at 300 °C (x/h) 66
Electrical data
Housing protection acc. to EN 60529 IP 20
Energy consumption
at 70 °C (W) 145
at 150 °C (W) 300
at 300 °C (W) 720
Series Modals
BINDER - FED 115
[+] View Model Specifications| Depth | 645 mm |
| Height | 702 mm |
| Internal Depth | 400 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 480 mm |
| Width | 834 mm |
| Internal Width | 600 mm |
| Power Requirements | 230 V: 50/60 Hz, 1.6 kW |
| Peak Power | 1100 W |
| Chamber Volume | 115 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Mechanical Convection |
| Weight | 62 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 6 |
| Temperature Precision | 0.3 K |
| Construction | Stainless Steel |
| Additional Model Specifications |

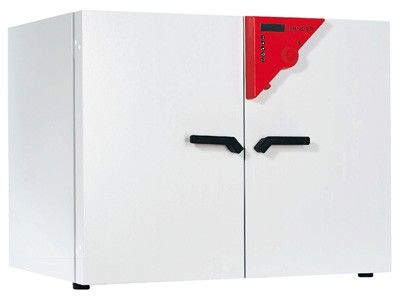

BINDER - FED 240
[+] View Model Specifications| Depth | 745 mm |
| Height | 822 mm |
| Internal Depth | 500 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 600 km |
| Width | 1034 mm |
| Internal Width | 800 mm |
| Power Requirements | 230 V: 50/60 Hz, 2.7 kW |
| Peak Power | 1400 W |
| Chamber Volume | 240 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Mechanical Convection |
| Weight | 96 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 7 |
| Temperature Precision | 0.3 K |
| Construction | Stainless Steel |
| Additional Model Specifications |

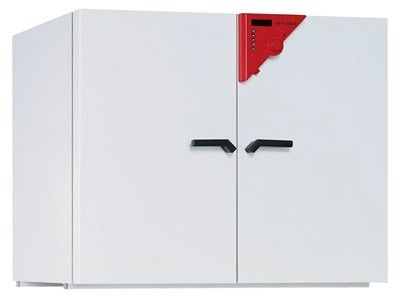

BINDER - FED 400
[+] View Model Specifications| Depth | 765 mm |
| Height | 1022 mm |
| Internal Depth | 500 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 800 mm |
| Width | 1234 mm |
| Internal Width | 1000 mm |
| Power Requirements | 400 V 3N~: 50/60 Hz, 3.4 kW |
| Peak Power | 2340 W |
| Chamber Volume | 400 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Mechanical Convection |
| Weight | 145 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 10 |
| Temperature Precision | 0.3 K |
| Construction | Stainless Steel |
| Additional Model Specifications |

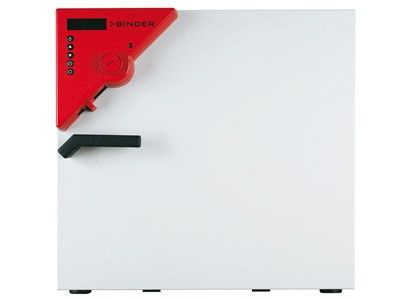

BINDER - FED 53
[+] View Model Specifications| Depth | 575 mm |
| Height | 617 mm |
| Internal Depth | 330 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 400 mm |
| Width | 634 mm |
| Internal Width | 400 mm |
| Power Requirements | 230 V: 50/60 Hz, 1.2 kW |
| Peak Power | 933 W |
| Chamber Volume | 53 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Mechanical Convection |
| Weight | 44 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 5 |
| Temperature Precision | 0.3 K |
| Construction | Stainless Steel |
| Additional Model Specifications |

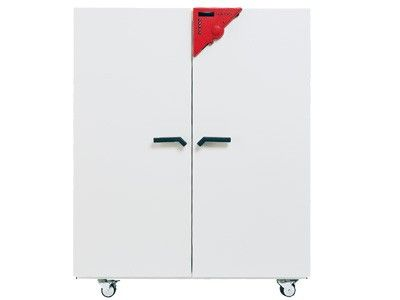

BINDER - FED 720
[+] View Model Specifications| Depth | 865 mm |
| Height | 1528 mm |
| Internal Depth | 600 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 1200 mm |
| Width | 1234 mm |
| Internal Width | 1000 mm |
| Power Requirements | 400 V 3N~: 50/60 Hz, 5 kW |
| Peak Power | 2600 W |
| Chamber Volume | 720 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Mechanical Convection |
| Weight | 195 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 15 |
| Temperature Precision | 0.3 K |
| Construction | Stainless Steel |
| Additional Model Specifications |
