BINDER - FP Series
Manufactured by BINDER
No Documents

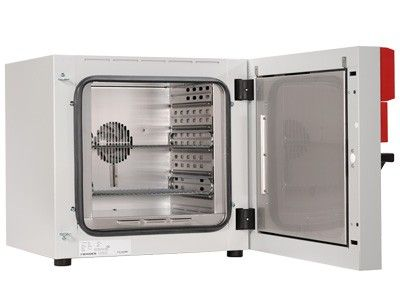

Temperature test chamber with forced convection
FP series chambers are designed for the most demanding test applications and are particularly effective, thanks to their extensive programming abilities. The forced convection reliably facilitates quick drying times as well as extra rapid heating-up, even with fully loaded chambers.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & Manuals
There are no Documents or Manuals available.
Features of FP Series
- Electronically controlled APT.line™ preheating chamber assuring temperature accuracy and reproducible results Temperature range 5 °C (9 ºF) above ambient temperature up to 300 °C (572 °F)
- MP Controller, 2 programs with 10 sections each or alternatively switch over to 1 program with 20 sections - The time interval of single program sections can be adjusted up to a maximum of 99:59 hours or 999:59 hours. This adjustment applies to all program sections - Integrated week program timer with real time function
- Digital temperature setting with an accuracy of one degree
- Adjustable fan speed
- Adjustable front ventilation flap slide and rear exhaust ø 50 mm (1.97 inch)
- Elapsed time indicator
- Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
- RS 422 interface for use with optional GMP/GLP and FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software, or switch over to printer output with RS 232 / RS 422 interface converter
- Units up to 115 liters are stackable
- 2 chrome-plated racks included
- BINDER test certificate
- Access ports: With silicon plugs for inserting external measuring devices into the chamber. Access ports with 10, 30, 50, 100 mm (0.4, 1.2, 2, 3.94 inch) diameter.
- Specimen temperature measurement: Additional flexible PT 100 temperature sensor for precise temperature measurement of the specimen with digital temperature display. Recording of measurement data possible via RS 422 interface.
- Calibration certificates: Measurement in the center at specified values. Additional measuring points or test values according to your specification.
- Access port with silicone plugs, 10 mm (0.39 inch), 30 mm (1.18 inch), 50 mm (1.97 inch), 100 mm (3.94 inch)
- HEPA fresh-air filter, Class H 14 (according to EN 1822, min. 99.999% for 0.3 µm particles)
- Securing elements for additional fastening of racks (1 set of 4 pieces)
- Anti - slip rubber pads for safe stacking (1 set of 4 pieces)
- Measurement of air change rate according to ASTM D5374, with definition and protocol according to ambient temperature (Mesurement in factory)
- Temperature measurement acc. to DIN 12880 (27 measuring points) at 150 °C (302 °F) or at specified temperature with measuring protocol and certificate
- Factory calibration certificate. Measurement in center of chamber at 150 °C (302 °F) or at specified testing temperature
- Extension to factory calibration certificate. Each additional measurement at an additional measuring point or temperature
- Additional measuring channel for digital display of specimen temperature, with flexible PT 100 temperature sensor. Measuring data recorded through RS 422 port
- Independent adjustable temperature safety device, class 3.1 (DIN 12880) with visual alarm
- Analog temperature output, 4 - 20 mA, with 6 - pin DIN socket (output not adjustable)
- Zero-voltage relay outputs accessible via 6-pin DIN socket. Additional module for controlling 2 relay outputs via 2 of the programmable controller’s controller contacts. Outputs can be switched on and off either automatically, or also manually O
- Data Logger Kit T 350: For the continuous temperature recording of 0 °C (32 °F) to 350 °C (662 °F). Kit includes 1 data logger, PT 100 sensor with 2 m Teflon extension cable and 1 fixture for the connection at the BINDER unit
- Data Logger Software: Configuration und evaluation software for all BINDER Data Logger Kits, incl. data cable
- Rack, chrome - plated
- Rack, stainless steel
- Shelf, perforated, stainless steel
- Door Lock
- Door gasket, FKM (Viton)
- Inert gas connection (gas inlet and outlet; Ø 10 mm (0.39 inch)).We recommend, in addition, the option mostly gas-tight version
- Mostly gas - tight version
- Door with window 230 x 230 mm (9.06 x 9.06 inch) and interior lighting (15 W)
- Increased air change rate through high performance fan
General Specifications
There are no General Specifications available.
Additional Specifications
FP 53
Temperature data
Temperature variation 1)
at 70 °C (± °C) 0.8
at 150 °C (± °C) 2
at 300 °C (± °C) 3.7
Temperature fluctuation (± °C) 0.3
Heating up time 2)
to 70 °C (Min.) 6
to 150 °C (Min.) 24
to 250 °C (Min.) 45
Recov. time after door was opened for 30 sec. 2)
at 70 °C (Min.) 2
at 150 °C (Min.) 5
at 300 °C (Min.) 10
Exterior dimensions
Depth plus door handle and exhaust duct (mm/inch) 90 / 3.5
Wall clearance rear (mm/inch) 100 / 3.9
Wall clearance side (mm/inch) 160 / 6.3
Exhaust duct outer- Ø (mm/inch) 52 / 2.1
Steam space volume (l/cu.ft.) 77 / 2.7
Number of doors 1
Interior dimensions
Racks, chrome-plated (number standard/max.) 2 / 5
Load per rack (kg/lbs.) 15 / 33
Permitted total load (kg/lbs.) 40 / 88
Electrical data
Housing protection acc. to EN 60529 IP 20
Energy consumption
at 70 °C (W) 145
at 150 °C (W) 300
at 300 °C (W) 720
Series Modals
BINDER - FP 115
[+] View Model Specifications| Depth | 645 mm |
| Height | 702 mm |
| Internal Depth | 400 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 480 mm |
| Width | 834 mm |
| Internal Width | 600 mm |
| Power Requirements | (±10 %) 50 / 60 Hz, 230V |
| Peak Power | 1100 W |
| Chamber Volume | 115 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 62 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 6 |
| Shipping Weight | 137 lbs |
| Construction | Stainless Steel |
| Additional Model Specifications | [u]Exterior dimensions[/u]
Plus door handle and connection (mm/inch): 105 / 4.1 Wall clearance, rear (mm/inch): 100 / 3.9 Wall clearance, side (mm/inch): 160 / 6.3 Exhaust duct (outer Ø mm/inch): 52 / 2.1 Steam space volume (l/cu.ft): 158 / 5.6 Number of doors (ea.): 1 [u]Temperature data[/u] Temperature variation at 70 °C (158 °F) (± K): 0.7 at 150 °C (302 °F) (± K): 1.8 at 300 °C (572 °F) (± K): 3.9 Temperature fluctuation (± K): 0.3 Warm-up time 1): at 70 °C (158 °F) (min.): 7 at 150 °C (302 °F) (min.): 30 to 250 °C (482 °F) (min.): 49 Recovery time after doors were open for 30 sec. 1): at 70 °C (158 °F) (min.): 2 at 150 °C (302 °F) (min.): 8 at 300 °C (572 °F) (min.): 15 [u]Ventilation data[/u] Ventilation: at 70 °C (158 °F) (x/h): 29 at 150 °C (302 °F) (x/h): 32 at 300 °C (572 °F) (x/h): 26 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Nominal voltage (± 10%) 50 / 60 Hz (V): 230 Nominal voltage (± 10%) 60 Hz (V): 115 Nominal power (kW): 1.6 Energy consumption: at 70 °C (158 °F) (W): 230 at 150 °C (302 °F) (W): 544 at 300 °C (572 °F) (W): 1100 |
BINDER - FP 240
[+] View Model Specifications| Depth | 745 mm |
| Height | 822 mm |
| Internal Depth | 500 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 600 mm |
| Width | 1034 mm |
| Internal Width | 800 mm |
| Power Requirements | 50 / 60 Hz, 230V |
| Peak Power | 1400 W |
| Chamber Volume | 240 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 98 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 7 |
| Shipping Weight | 216 lbs |
| Construction | Stainless Steel |
| Additional Model Specifications | [u]Exterior dimensions[/u]
Plus door handle and connection (mm/inch): 105 / 4.1 Wall clearance, rear (mm/inch): 100 / 3.9 Wall clearance, side (mm/inch): 160 / 6.3 Exhaust duct (outer Ø mm/inch): 52 / 2.1 Steam space volume (l/cu.ft.): 308 / 10.9 Number of doors (ea.): 2 [u]Temperature data[/u] Temperature variation: at 70 °C (158 °F) (± K): 0.8 at 150 °C (302 °F) (± K): 2 at 300 °C (572 °F) (± K): 4.3 Temperature fluctuation(± K): 0.3 Warm-up time 1): at 70 °C (158 °F) (min.) 12 at 150 °C (302 °F) (min.) 27 at 300 °C (572 °F) (min.) 50 Recovery time after doors were open for 30 sec. 1): at 70 °C (158 °F) (min.): 2 at 150 °C (302 °F) (min.): 10 at 300 °C (572 °F) (min.): 16 [u]Ventilation data[/u] Ventilation: at 70 °C (158 °F) (x/h): 19 at 150 °C (302 °F) (x/h): 20 at 300 °C (572 °F) (x/h): 18 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Nominal voltage (± 10%) 50 / 60 Hz (V): 230 Nominal Voltage (± 10%) 60 Hz (V): 208 3N~ Nominal power (kW): 2.7 Energy consumption: at 70 °C (158 °F) (W): 370 at 150 °C (302 °F) (W): 850 at 300 °C (572 °F) (W): 1400 |

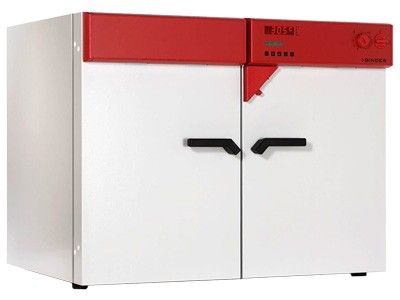

BINDER - FP 400
[+] View Model Specifications| Depth | 765 mm |
| Height | 1022 mm |
| Internal Depth | 500 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 800 mm |
| Width | 1234 mm |
| Internal Width | 1000 mm |
| Power Requirements | 50/60 Hz (V) 400 3N~ |
| Peak Power | 2340 W |
| Chamber Volume | 400 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 145 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 10 |
| Shipping Weight | 320 lbs |
| Construction | Stainless Steel |
| Additional Model Specifications | [u]Exterior dimensions[/u]
Plus door handle and connection (mm/inch): 105 / 4.1 Wall clearance, rear (mm/inch): 100 / 3.9 Wall clearance, side (mm/inch): 160 / 6.3 Exhaust duct (outer Ø mm/inch): 52 / 2.1 Steam space volume (l/cu.ft.): 498 / 17.6 Number of doors (ea.): 2 [u]Temperature data[/u] Temperature variation: at 70 °C (158 °F) (± K): 1 at 150 °C (302 °F) (± K): 2.5 at 300 °C (572 °F) (± K): 4.8 Temperature fluctuation (± K): 0.3 Warm-up time 1): at 70 °C (158 °F) (min.): 18 at 150 °C (302 °F) (min.): 35 to 250 °C (482 °F) (min.): 60 Recovery time after doors were open for 30 sec. 1): at 70 °C (158 °F) (min.): 2 at 150 °C (302 °F) (min.): 17 at 300 °C (572 °F) (min.): 21 [u]Ventilation data[/u] Ventilation: at 70 °C (158 °F) (x/h): 17 at 150 °C (302 °F) (x/h): 18 at 300 °C (572 °F) (x/h): 16 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Nominal voltage (± 10%) 60 Hz (V): 208 3N~ Nominal power (kW): 3.4 Energy consumption: at 70 °C (158 °F) (W): 520 at 150 °C (302 °F) (W): 1200 at 300 °C (572 °F) (W): 2340 |

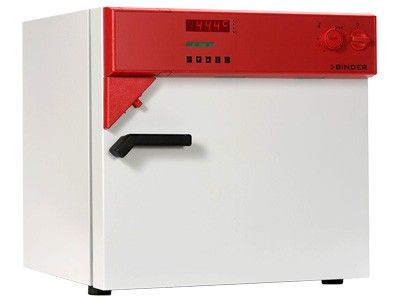

BINDER - FP 53
[+] View Model Specifications| Depth | 575 mm |
| Height | 617 mm |
| Internal Depth | 330 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 400 mm |
| Width | 634 mm |
| Internal Width | 400 mm |
| Power Requirements | 50 / 60 Hz (V) 230 1N~ |
| Peak Power | 720 W |
| Chamber Volume | 53 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 45 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 5 |
| Shipping Weight | 99 lbs |
| Construction | Stainless Steel |
| Additional Model Specifications | [u]Exterior dimensions[/u]
Plus door handle and connection (mm): 105 Wall clearance, rear (mm): 100 Wall clearance, side (mm): 160 Exhaust duct (outer Ø mm): 52 Steam space volume (l): 77 Number of doors (ea.): 1 [u]Temperature data[/u] Temperature variation: at 70 °C (± K): 0,8 at 150 °C (± K): 2 at 300 °C (± K): 3,7 Temperature fluctuation (± K): 0,3 Warm-up time 1): to 70 °C (min.): 6 to 150 °C (min.): 24 to 250 °C (min.): 45 Recovery time after doors were open for 30 sec. 1) at 70 °C (min.): 2 at 150 °C (min.): 5 at 300 °C (min.): 10 [u]Ventilation data[/u] Ventilation: at 70 °C (x/h): 59 at 150 °C (x/h): 64 at 300 °C (x/h): 53 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Nominal power (kW): 1,2 Energy consumption: at 70 °C (W): 145 at 150 °C (W): 300 at 300 °C (W): 720 |

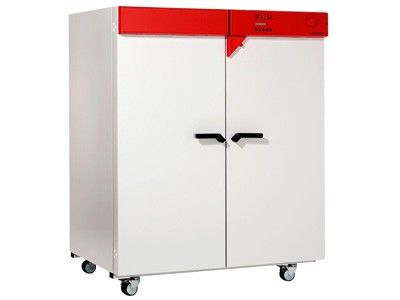

BINDER - FP 720
[+] View Model Specifications| Depth | 865 mm |
| Height | 1528 mm |
| Internal Depth | 600 mm |
| Temperature Range | 5 to 300 °C |
| Internal Height | 1200 mm |
| Width | 1234 mm |
| Internal Width | 1000 mm |
| Power Requirements | 50 / 60 Hz (V) 400 3N~ |
| Peak Power | 2600 W |
| Chamber Volume | 720 L |
| Oven Orientation | Bench / Cabinet |
| Weight | 184 kg |
| Cooling System | 0 |
| Number of Shelves | 2 - 15 |
| Shipping Weight | 406 lbs |
| Construction | Stainless Steel |
| Additional Model Specifications | [u]Exterior dimensions[/u]
Plus door handle and connection (mm/inch): 105 / 4.1 Wall clearance, rear (mm/inch): 100 / 3.9 Wall clearance, side (mm/inch): 160 / 6.3 Exhaust duct (outer Ø mm/inch): 52 / 2.1 Steam space volume (l/cu.ft.): 869 / 30.7 Number of doors (ea.): 2 [u]Temperature data[/u] Temperature variation: at 70 °C (158 °F) (± K): 1 at 150 °C (302 °F) (± K): 2 at 300 °C (572 °F) (± K): 5.5 Temperature fluctuation (± K): 0.3 Warm-up time 1): at 70 °C (158 °F) (min.): 25 at 150 °C (302 °F) (min.): 39 to 250 °C (482 °F) (min.): 65 Recovery time after doors were open for 30 sec. 1): at 70 °C (158 °F) (min.): 2 at 150 °C (302 °F) (min.): 20 at 300 °C (572 °F) (min.): 24 [u]Ventilation data[/u] Ventilation: at 70 °C (158 °F) (x/h): 11 at 150 °C (302 °F) (x/h): 12 at 300 °C (572 °F) (x/h): 10 [u]Electrical data[/u] IP protection class acc. to EN 60529: IP 20 Nominal voltage (± 10%) 60 Hz (V): 208 3N~ 0%) Nominal power (kW): 5 Energy consumption: at 70 °C (158 °F) (W): 570 at 150 °C (302 °F) (W): 1320 at 300 °C (572 °F) (W): 2600 |
