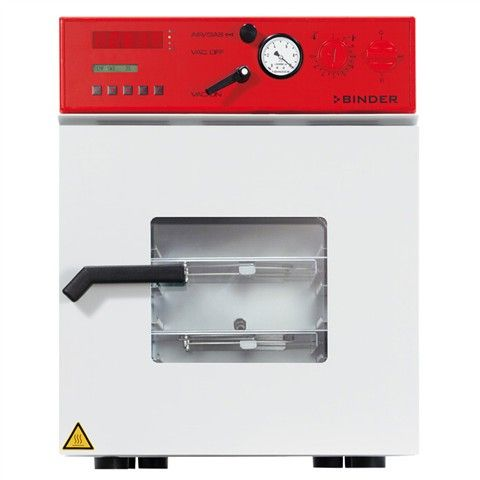

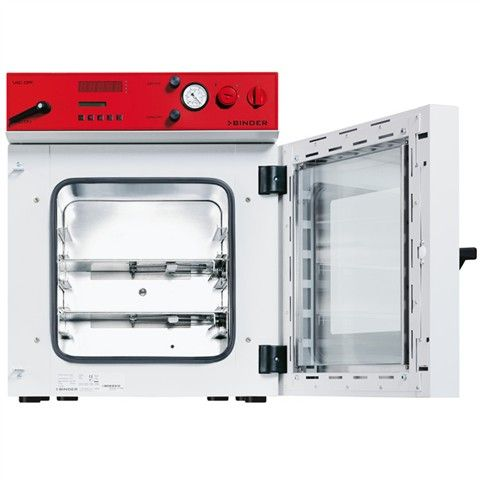

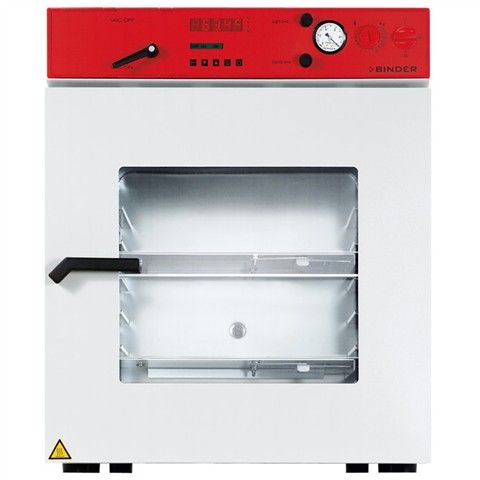

BINDER - VD Series
Manufactured by BINDER
Vacuum drying oven for non-flammable solvents
The VD series offers safe drying with homogeneous temperature distribution, thanks to its APT.line™ air jacket system. Optimum heat transfer through patented expansion rack technology; the racks can be positioned as needed and are easy to clean. In addition to these many features, the units have an individually programmable controller.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & ManualsView All Documents
Features of VD Series
- Electronically controlled APT.line™ preheating chamber technology with 2 patented expansion racks assures temperature accuracy and reproducible results
- Temperature range 15 °C (27 °F) above ambient temperature up to 200 °C (392 °F)
- MP controller with 2 programs with 10 sections each, or alternatively 1 program with 20 sections - Integrated week program timer with real time function - Digital temperature setting with an accuracy of one degree - Elapsed time indicator
- Precision-adjustable ventilation valve
- Precision-adjustable inert gas valve with Cross-Flow-Technology
- All electrical componets are decoupled from the interior chamber
- Spring mounted safety glass panel with shatter protection
- Independent adjustable temperature safety device class 2 (DIN 12880), with visual temperature alarm
- Measuring port DN 16
- Analog pressure gauge (display pressure difference between the inner chamber and the ambient pressure)
- Electro polished inner chamber, suction and ventilation tubes, pressure container, expansion racks and ball valve are made of stainless steel
- Door gasket made of tempered silicone
- 2 x 24 V DC (max 0.4 A) switching outputs, switched via 2 control contact of the program editor
- RS 422 interface for use with optional GMP/GLP and FDA guideline 21 CFR Part 11 compliant APT-COM™ DataControlSystem software
- 2 patented, flexible aluminum expansion racks
- Available as complete system, with module and vacuum pump.
- Features: - Reduced sound level - Practical working height - Well balanced system
- BINDER test certificate
- Measuring port: Vacuum-tight bushing for instrument connection (9-pin) into the unit.
- Specimen temperature display: Using a PT 100 sensor with digital temperature display.
- BINDER service: This BINDER service is available to maintain your vacuum drying ovens in top condition. In addition to calibrating your equipment, we will also perform a comprehensive safety inspection in accordance with DIN.
- Connection kit consists of: clamping ring, aluminum, centering ring, small flange with hose nozzle, 2.5 m (8.2 ft.) rubber hose and 2 hose clamps
- Measurement port for air-tight lead-through of measurement lines into the unit (9 - pin)
- Factory calibration certificate. Measurement in center of chamber at 100 °C (212 °F) or at specified testing temperature
- Extension to factory calibration certificate. Each additional measurement at an additional measuring point or temperature
- Factory calibration certificate for digital pressure display. Measurement at 100 mbar or at specified pressure (range: 20-900 mbar)
- Factory calibration certificate for digital pressure display, extension. Each additional measurement at an additional pressure (range: 20-900 mbar)
- Specimen temperature measurement via flexible PT 100 sensor with digital temperature display
- Factory calibration certificate for digital specimen temperature display. Measurement at 100 °C (212 °F) or at specified testing temperature
- VP 1.1 chemical membrane pump (nominal air flow 2.0 m³/hour), final pressure 7 mbar, with separator and emission condenser 230 V 1N ~ 50 / 60 Hz
- VP 2.1 chemical membrane pump (nominal air flow 3.4 m³/hour), final pressure 7 mbar, with separator and emission condenser 230 V 1N ~ 50 / 60 Hz
- VP 3.1 speed-controlled chemical membrane pump (nominal air flow 4.6 m³/hour), final pressure 1.5 mbar, with separator and emission condenser 230 V 1N ~ 50 / 60 Hz
- Expansion racks, aluminum
- Expansion racks, stainless steel
- Door gasket, FKM (Viton)
- Vacuum module for installation of vacuum pumps, with switchable power socket (ON / OFF) (230 V / 16 A)
- Digital pressure display, measuring area from 1 mbar to atm. pressure, display accuracy 1 mbar
- Vacuum module for installation of vacuum pumps, with switchable power socket (ON/OFF) 230 V / 16 A) 230 V 1N ~ 50 / 60 Hz
- Vacuum module with chemical membrane pump VP 1 (nominal air flow 1.7 m³/hour), final pressure 9 mbar, with separator and emission condenser, including all necessary vacuum connection parts. Pump is supplied ready for connection in separate packaging
- Vacuum module with chemical membrane pump VP 2 (nominal air flow 3.0 m³/hour), final pressure 2 mbar, with separator and emission condenser, including all necessary vacuum connection parts. Pump is supplied ready for connection in separate packaging
- Vacuum module with speed-controlled chemical membrane pump VP 3 (nominal air flow 3.5 m³/hour), final pressure 2 mbar, with separator and emission condenser, including all necessary vacuum connection parts, as well as digital vacuum controller (measuring precision 1 mbar)
General Specifications
There are no General Specifications available.
Additional Specifications
[u]Exterior dimensions[/u]
Width option vacuum module: 25.0 in
Height option vacuum module: 24.6 in
Depth option vacuum module: 21.7 in
Total width with option vacuum module: 25.0 in
Total height with option vacuum module: 55.1 in
Total depth with option vacuum module: 21.7 in
Plus door handle, connection: 4.0 in
Wall clearance rear: 4.0 in
Wall clearance side: 5.3 in
[u]Interior dimensions [/u]
Expansion racks (Aluminium): 2 standard, 5 max
Distance between the racks: 2.44 in
Usable space per rack: 13.7 in W x 12.6 in D
Load per rack: 44 lbs
Permitted total load: 99 lbs
[u]Temperature data[/u]
Temperature variation:
at 100 °C (212 °F) (± °C) 2.5
at 200 °C (392 °F) (± °C) 4.5
Temperature fluctuation: ±0.1°C
Heating up time switch setting II:
to 100 °C (Min.) 80
to 200 °C (Min.) 130
Vacuum connection with small flange: .63 in
Measuring access port with small flange: 0.63 in
Inert gas connection with flow limiter - thread: (RP) 3 / 8
Permitted end vacuum: (mbar / torr) 1 x 10 - 2
Leak rate: (max. bar 1/h / torr 1/h) 1 x 10 - 2
[u]Electrical data[/u]
Housing protection acc. to EN 60529: IP 20
Energy consumption:
at 100 °C (W) 150
at 200 °C (W) 445
Series Modals
BINDER - VD 115
[+] View Model Specifications| Depth | 622 mm |
| Height | 900 mm |
| Internal Depth | 450 mm |
| Temperature Range | 15 to 200 °C |
| Internal Height | 506 mm |
| Width | 740 mm |
| Internal Width | 506 mm |
| Power Requirements | 230 V: 50/60 Hz, 1.7 kW |
| Peak Power | 785 W |
| Chamber Volume | 115 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 153 kg |
| Number of Shelves | 2 - 6 |
| Temperature Precision | 0.1 K |
| Construction | Stainless Steel |
| Additional Model Specifications |
BINDER - VD 23
[+] View Model Specifications| Depth | 500 mm |
| Height | 655 mm |
| Internal Depth | 285 mm |
| Temperature Range | 15 to 200 °C |
| Internal Height | 285 mm |
| Width | 515 mm |
| Internal Width | 285 mm |
| Power Requirements | 230 V: 50/60 Hz, 1.2 kW |
| Peak Power | 280 W |
| Chamber Volume | 23 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 153 kg |
| Number of Shelves | 2-4 |
| Temperature Precision | 0.1 K |
| Construction | Stainless Steel |
| Additional Model Specifications |
BINDER - VD 53
[+] View Model Specifications| Depth | 550 mm |
| Height | 775 in |
| Internal Depth | 330 mm |
| Temperature Range | 15 to 200 °C |
| Internal Height | 400 mm |
| Width | 634 mm |
| Internal Width | 400 mm |
| Power Requirements | 230 V: 50/60 Hz, 1.2 kW |
| Peak Power | 445 W |
| Chamber Volume | 53 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 95 kg |
| Number of Shelves | 2 - 5 |
| Temperature Precision | 0.1 K |
| Construction | Stainless Steel |
| Additional Model Specifications |
