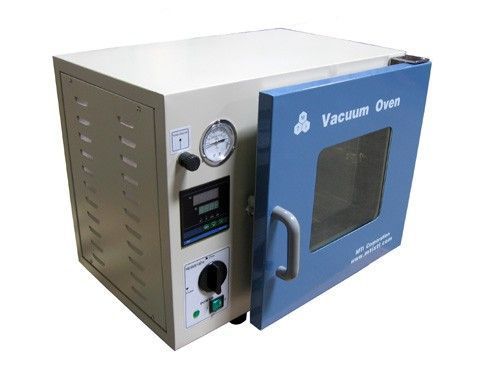

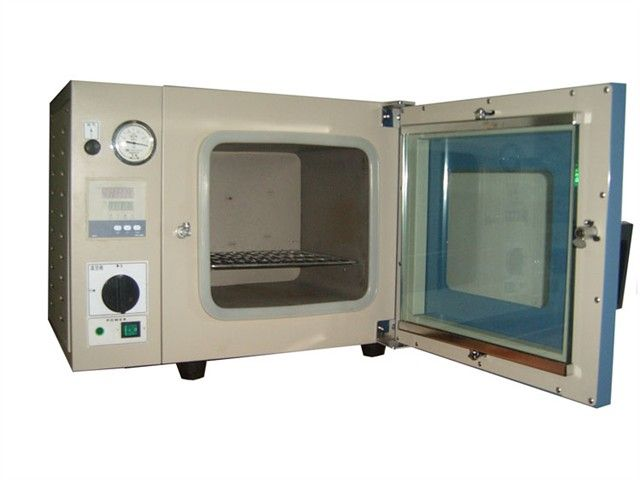

Bench-Top Vacuum Oven
Radiant warm wall heating system provides optimal uniformity and conserves chamber space for drying, curing, vacuum embedding, and plating applications.
Models Include:
Models Include:
- DZF-6020-110V
- DZF-6020-220V
- DZF-6050-110V
- DZF-6050-220V
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & Manuals
There are no Documents or Manuals available.
Features of DZF-60 Series
- 3" (7.6 cm) glass wool insulation prevents heat loss from working chamber.
- Silicone door gasket and positive latch door maintain seal at all vacuum levels.
- Exclusive polycarbonate safety shield protects door glass.
- Vacuum fittings require .25" (6.35 mm) I.D. tubing..
- Easy-to-clean stainless steel chamber interior.
- Vacuum and air lines constructed with corrosion-resistant stainless steel tubing for optimum chamber cleanliness and long term performance.
- Two removable stacking aluminum shelves included
- Operating temperature range from room temperature to 250oC (300oC Max for less than 60 minutes).
- Vacuum level displayed on gauges from 0 to 30" Hg.
- PID precision Digital Power controller control temperature to +/-1.5oC with a uniformity of +/-5 oC @ 100 oC; 25" Hg at center hot zone, e.g 6'x6' center area only) and built-in over temperature protection.
- Require a vacuum pump to connect the oven (not included )
General Specifications
| Depth | 18 in |
| Height | 20 in |
| Internal Depth | 11 in |
| Internal Height | 12 in |
| Width | 24 in |
| Internal Width | 12 in |
| Power Requirements | 110 VAC, 60 Hz |
| Peak Power | 1000 W |
| Chamber Volume | 25 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Shipping Weight | 170 lbs |
| Shipping Dimensions | 40 |
| Construction | Stainless Steel |
Additional Specifications
Vacuum: <133 pa
