Anton Paar - Electrokinetic Analyzer for Routine Solid Surface Analysis: SurPASS™ 3 Eco
Manufactured by Anton Paar
No Documents
Your gateway to solid surface charge analysis
SurPASS™ 3 Eco is the entry-level instrument for routine surface analysis featuring fully automated zeta potential measurements of macroscopic solids at real-life conditions. SurPASS™ 3 Eco employs the classical streaming potential and streaming current method for a direct analysis of the surface zeta potential. The zeta potential is related to the surface charge at the solid/liquid interface and is a key parameter for understanding surface characteristics and developing new specialized materials.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & Manuals
There are no Documents or Manuals available.
Features of Electrokinetic Analyzer for Routine Solid Surface Analysis: SurPASS™ 3 Eco
Electrokinetic analysis at the push of a button
- Direct analysis of the zeta potential at the solid/liquid interface, derived from streaming potential and streaming current measurement
- Zeta potential measurements down to a few millivolts
Ideal for quick routine measurements
- Single-point surface zeta potential measurements
- Zeta potential analysis of reactive materials
- Zeta potential analysis of samples in buffer solutions
Measuring cells for any sample geometry
- Cylindrical Cell for powders (min. particle size 25 µm ) and fibers
- Clamping Cell for non-destructive measurement of planar solids
- Adjustable Gap Cell for small samples
- Sample-specific measuring cells for contact lenses, hollow fiber membranes, and flexible tubing
High efficiency and sample throughput
- Quick exchange of measuring cells: plug-in and go
- Zeta potential measurement in <2 minutes
Upgrade options for a future-proof investment
- Unlock software features and add a titration unit for automated pH scans and analyses of the isoelectric point
- Enable recording of liquid-on-solid surface adsorption kinetics

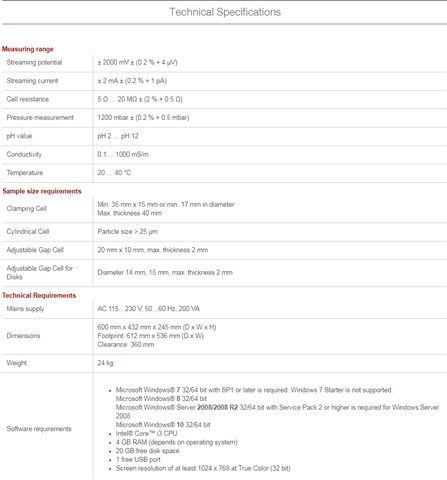

General Specifications
There are no General Specifications available.
