TECA Corporation - AHP-470 Series
Manufactured by TECA Corporation

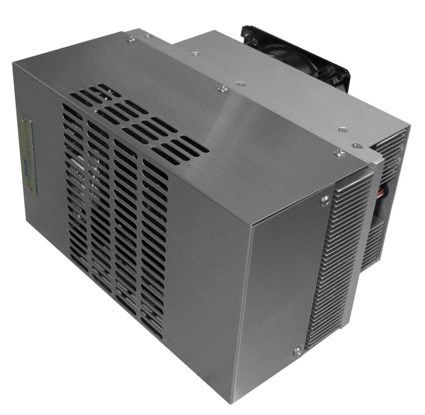

Compact Thermoelectric Air Conditioner
Enclosure Cooling for NEMA-12, NEMA-4, NEMA4X 95 Watts (315 BTU/HR):

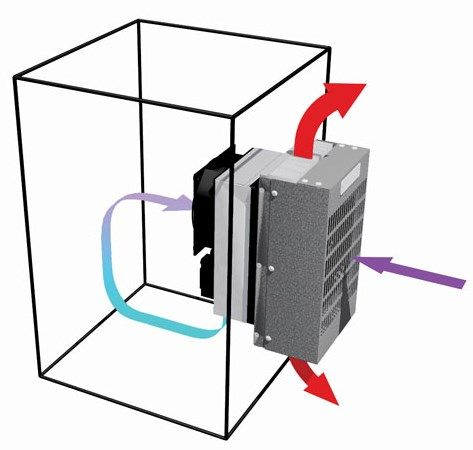

TECA’s AHP-470 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-470 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
TECA’s AHP-470 Series air conditioner protects electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, AHP-470 air conditioners cool electronic controls, electrical equipment, cabinets, and heat sensitive equipment. Suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of AHP-470 Series
• Compact (only 10” X 5.84” X 7.75”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Easy to use Pivot Clean feature
• Weight 14 LBS.
Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 24 VDC (12 VDC configuration available)
Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 315 BTU/HR
Cooling (Din 3168): 95 WATTS
Cooling COP (at L35 L35): 0.56
Heating (Traditional): > 572 BTU/HR
Heating (Din 3168): > 168 WATTS
Heating COP: > 1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
