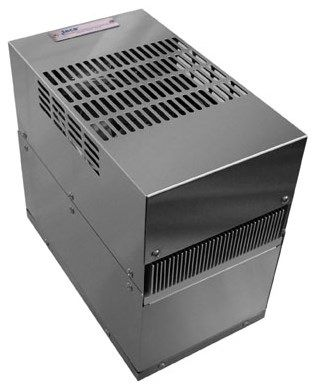

TECA Corporation - FHP-470 Series
Manufactured by TECA Corporation
Compact Flush Mount Thermoelectric Air Conditioner
Enclosure Cooling for NEMA-12, NEMA-4, NEMA4X 80 Watts (259 BTU/HR):

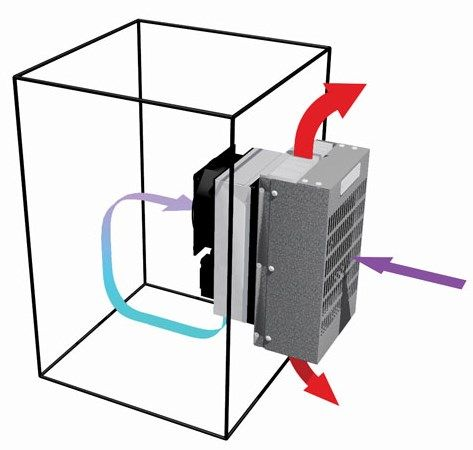

TECA’s FHP-470 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-470 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
TECA’s FHP-470 Series thermoelectric coolers protect electronics equipment from overheating. Utilizing reliable thermoelectric cooling technology, FHP-470 air conditioners cool control panels, electrical cabinets, and other heat sensitive electronic equipment. Suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as communications, military, kiosk, surveillance, food and beverage, transit, and more. Flush mounted design offers closed loop cooling without intruding into end user’s cabinet. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of FHP-470 Series
• Compact (only 10” X 5.84” X 7.97”)
• Mounts and operates in any orientation: horizontal, vertical, etc.
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel exterior housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS
Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 24 VDC (12 VDC configuration available)
Current: 7 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 259 BTU/HR
Cooling (Din 3168): 80 WATTS
Cooling COP (at L35 L35): 0.48
Heating (Traditional): > 572 BTU/HR
Heating (Din 3168): > 168 WATTS
Heating COP: > 1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
