TECA Corporation - IHP-590 Series
Manufactured by TECA Corporation
Compact Internal Mount Thermoelectric Air Conditioner
Enclosure Cooling for NEMA-12, NEMA-4, NEMA-4X 92 Watts (315 BTU/HR):
TECA’s IHP-590 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-590 air conditioners are suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
TECA’s IHP-590 Series air conditioner cools electrical cabinets and enclosures, protecting heat sensitive equipment from overheating. Utilizing reliable thermoelectric cooling technology, IHP-590 air conditioners are suitable for NEMA-12, NEMA-4, and NEMA-4X in industries such as kiosk, communications, surveillance, food and beverage, transit, military and more. Internally mounted design offers closed loop cooling without cooling equipment extruding into the ambient. TECA’s air conditioners for NEMA-4X enclosure cooling use military grade fans for superior performance and reliability. Protect your investment with reliable and low maintenance Peltier (thermoelectric) coolers.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of IHP-590 Series
• Compact (only 17.4” X 8” X 7.8”)

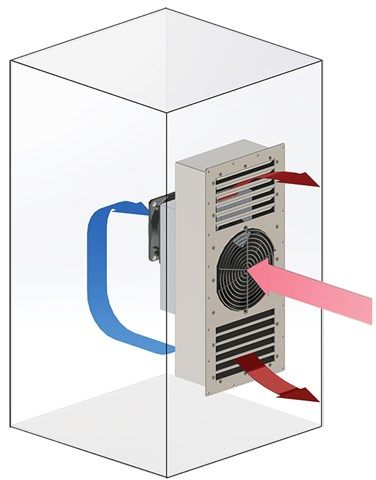

• Mounts and operates in any orientation, inside enclosure
• Available in two installation styles:
– Style A: Installs from inside of the enclosure
– Style B: Installs from outside of the enclosure
• Low vibration and noise
• No moving parts except fans
• Environmentally safe
• No compressor, fluorocarbons or filters
• Virtually maintenance-free operation
• Stainless steel housing
• Efficient heat exchanger mode (ECO-Mode)
• Weight 16 LBS.
Includes:
• Temperature controller
• Mounting gasket
• Mounting hardware
• Power input leads
• Power saving heat exchanger mode (ECO-Mode)
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 24 VDC
Current: 6.9 AMPS, 0.3 AMPS (Eco-Mode)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 315 BTU/HR
Cooling (Din 3168): 92 WATTS
Cooling COP (at L35 L35): 0.56
Heating (Traditional): > 562 BTU/HR
Heating (Din 3168): > 165 WATTS
Heating COP: > 1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
