TECA Corporation - FHP-2250 High Efficiency
Manufactured by TECA Corporation

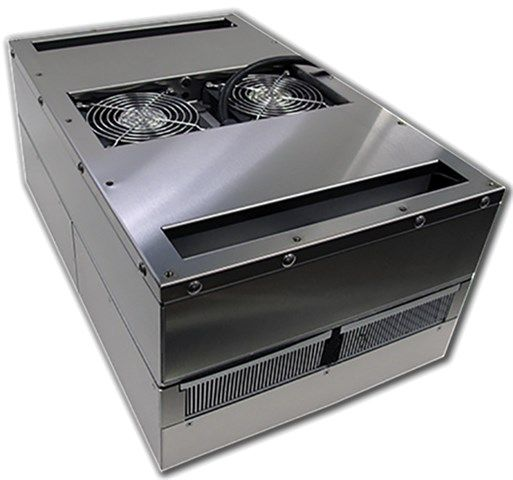

Efficient Flush Mount Thermoelectric Air Conditioner
Efficient Thermoelectric Air Conditioner Maintains NEMA Cabinet Rating, NEMA-12/4/4X, 1220 BTU/HR (358 watts), AC or DC Input Voltage:

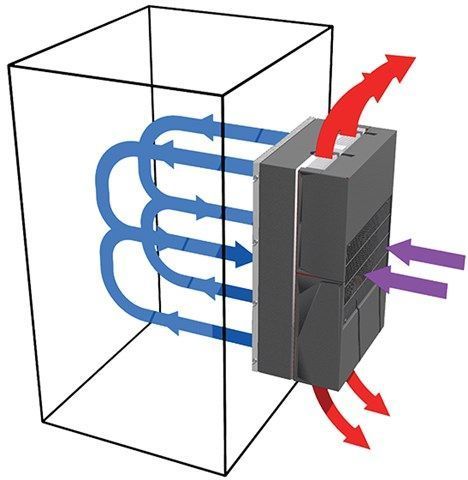

For cooling NEMA-12/4/4X cabinets, the FHP-2250-Series is an advanced thermoelectric cooler. The FHP-2250-Series is a Peltier air conditioner designed to cool NEMA enclosures and protect electronics equipment from overheating. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. ECO-Mode temperature control feature helps save on power use. The flush-mounted design of the FHP-2250 is ideal for control cabinets with little to no room for added equipment.
This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, and 120 VAC input. It can cool while maintaining NEMA-12/4/4X in industrial or harsh military environments. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliability.
For cooling NEMA-12/4/4X cabinets, the FHP-2250-Series is an advanced thermoelectric cooler. The FHP-2250-Series is a Peltier air conditioner designed to cool NEMA enclosures and protect electronics equipment from overheating. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. ECO-Mode temperature control feature helps save on power use. The flush-mounted design of the FHP-2250 is ideal for control cabinets with little to no room for added equipment.
This thermoelectric cabinet cooler accepts 24 vdc, 48 vdc, and 120 VAC input. It can cool while maintaining NEMA-12/4/4X in industrial or harsh military environments. Protect against equipment failure due to overheating. Choose low maintenance TECA air conditioners for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of FHP-2250 High Efficiency
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• No intrusion into enclosure
• Central input cord for easy mounting
• Closed loop design
• Condensate control and evaporation system
• Compact (20.5” L X 13” W X 8.5” D)
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 66 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
• Circuit breaker
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 120 VAC, (24 VDC, 48 VDC)
Current: 3.6 AMPS, (15 AMPS, 8 AMPS)
Operating Ambient: -40/+70 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4, Nema-4X
Performance Rating:
Cooling (Traditional): 1220 BTU/HR
Cooling (Din 3168): 358 WATTS
Cooling COP (at L35 L35): 0.83
Heating (Traditional): >1640 BTU/HR
Heating (Din 3168): >480 WATTS
Heating COP: >1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
