TECA Corporation - AHP-2259 High Efficiency
Manufactured by TECA Corporation
High Efficiency Thermoelectric Cabinet Cooler
Cabinet Cooler for NEMA-12/4/4X, 1330 BTU/HR (390 watts), As much as 10% increased efficiency in high ambient temperatures:
For thermoelectric cooling of NEMA-12/4/4X cabinets, the AHP-2259-Series is an advanced, high efficiency thermoelectric cooler. The AHP-2259-Series is a Peltier air conditioner designed to protect electronics equipment from overheating. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for industrial or harsh military environments. ECO-Mode temperature control feature helps save on power use.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliability.
For thermoelectric cooling of NEMA-12/4/4X cabinets, the AHP-2259-Series is an advanced, high efficiency thermoelectric cooler. The AHP-2259-Series is a Peltier air conditioner designed to protect electronics equipment from overheating. Thermoelectric cooling technology reliably works to cool electronic controls, electrical equipment, cabinets, and other heat sensitive equipment. Ideal for industrial or harsh military environments. ECO-Mode temperature control feature helps save on power use.
Protect your equipment from failure due to overheating. Choose low maintenance thermoelectric TECA air conditioners for superior performance and reliability.
Active Questions & AnswersAsk a Question
There are no current Discussions
Temperature Controller Service ProvidersView All (8)
Documents & ManualsView All Documents
Features of AHP-2259 High Efficiency
• 90-264 VAC Universal input power supply
• High capacity thermoelectric design
• Power saving air to air heat exchanger mode (ECO-Mode)
• Heavy duty full perimeter mounting
• Lower profile intrusion into enclosure
• Central input cord for easy mounting

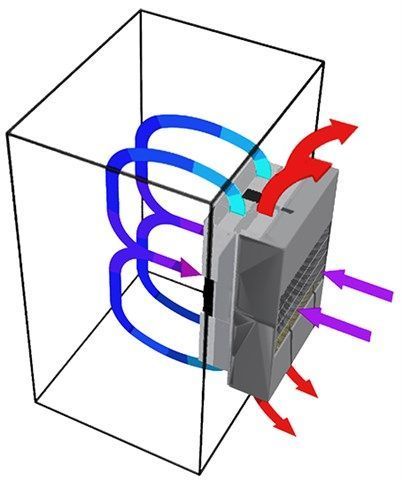

• Closed loop design
• Condensate control and evaporation system
• Increased efficiency at higher ambient by as much as 10%
• Virtually maintenance free
• No compressor
• Environmentally friendly and safe
• Stainless Steel exterior housing
• Mounts and operates in any orientation
• Integral temperature controller
• Weight 55 LBS.
Includes:
• Power supply
• Temperature controller
• Power saving heat exchanger mode (ECO-Mode)
• Mounting gasket
• Mounting hardware
• Power input cord
General Specifications
There are no General Specifications available.
Additional Specifications
Voltage: 100-240 VAC
Current: 4.5-1.8 AMPS
Operating Ambient: -40/+65 °C
Operating Enclosure: -10/+60 °C
Environments: Nema-12, Nema-4
Performance Rating:
Cooling (Traditional): 1330 BTU/HR
Cooling (Din 3168): 390 WATTS
Cooling COP (at L35 L35): 0.87
Heating (Traditional): >980 BTU/HR
Heating (Din 3168): >290 WATTS
Heating COP: >1.0
Controller Features:
TC-4F: Active cool 35 °C; ECO-Mode 25 °C
TC-7F: Active cool 35 °C; Active heat 15 °C; ECO-Mode 25 °C
